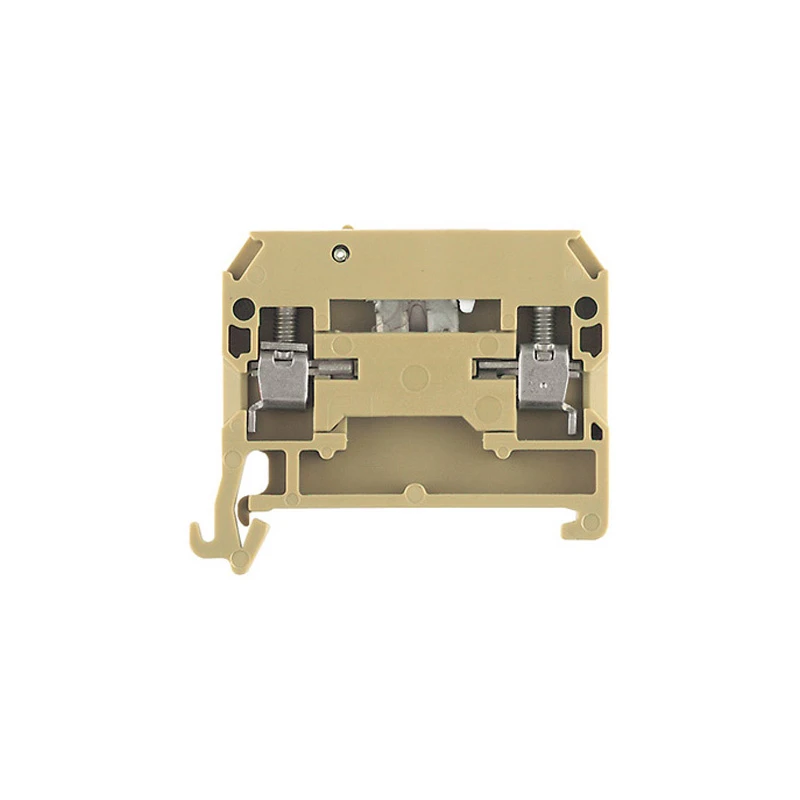

Weidmuller Terminal Test Disconnect Sakr/35 4mm Beige Screw Connector

Description

Technical Specifications  Technical Specifications (Knife) disconnect terminal block Type of cross disconnection None Mounting method DIN rail (top hat rail) 35 mm Material insulation body Thermoplastic Type of electrical connection 1 Screw connection Rated current In 10 A Type of electrical connection 2 Screw connection Rated voltage 400 V Number of levels 1 Operating temperature -50 – 100 °C Number of clamp positions per level 2 Connectable conductor cross section solid-core 0.2 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Closing plate required Yes With integrated test socket No Internally connected stages No · Technical Data Sheet – Click to Download
