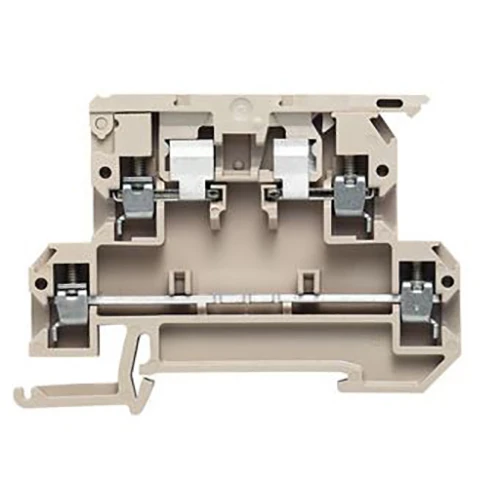

Weidmuller W-Series 4mm² 2-Tier Fuse Terminal Block 6.3A 500V 26-12AWG Dark Beige
£6.01 Incl. VAT
· · Rated current: 6.3A · · Rated voltage: 500V · · Screw connection · · Snap-on mounting · · Cartridge fuse: G-Si 5 x 20 · · Pivoting cartridge holder · · Without LED · · Number of clamping points per level: 2 · · End cover plate required
Description
Technical Specifications Technical Specifications Fused terminal block Material insulation body Urea formaldehyde Colour Beige Mounting method DIN rail (top hat rail) 35 mm Voltage type for defect indication AC Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 500 V Number of levels 1 Rated current In 6.3 A Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Supply voltage for defect-indication 10 – 24 V Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Closing plate required Yes · Technical Data Sheet – Click to Download
