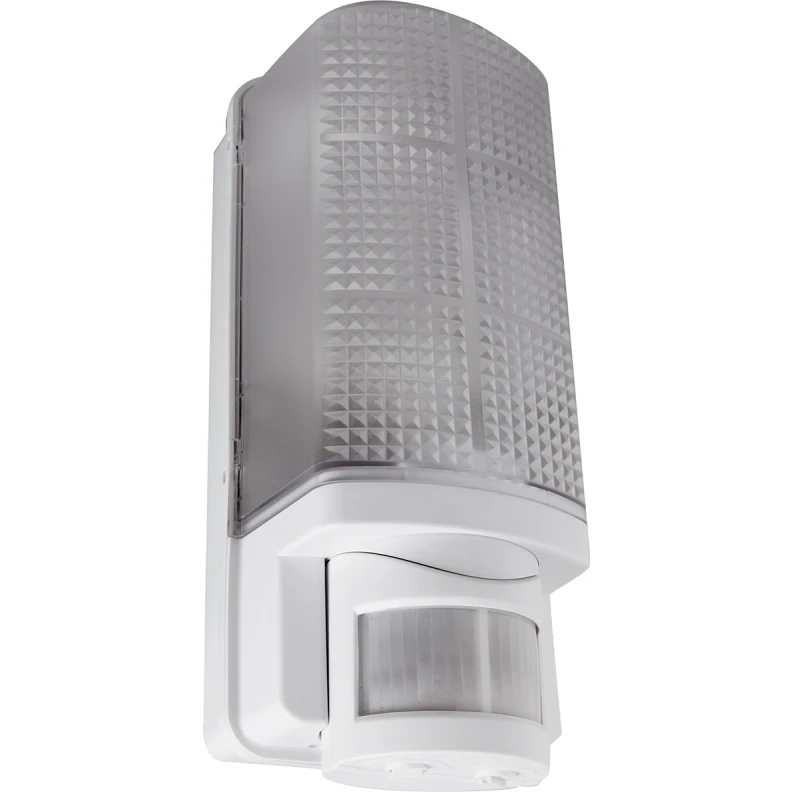

Robus Whitestar 60W Bulkhead With Pir

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Housing material Plastic Degree of protection (IP), front side IP44 Outer diameter – mm Housing colour White Width 115 mm Length 115 mm Conductor cross section – mm² Height/depth 275 mm Number of poles – Recess width – mm Rated life time L70/B50 at 25 °C 20000 h Recess diameter – mm Maximum system power 60 W Power factor 0.6 Unified Glare Rating (UGR) – Number of lamps 1 Recess length – mm Recess height/depth – mm Lamp power – – – W Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Suitable for suspended mounting No Light source included No Suitable for surface mounting No With movement sensor Yes With light sensor No Dimming with push-button No Dimming 1-10 V No Dimming potentiometer (integrated) No Dimming DSI No Dimming mains voltage modulation No Dimming DMX No Dimming 0-10 V No With air slots No Suitable for ceiling mounting No Suitable for emergency lighting No Control gear included Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for light line configuration No Suitable for recessed mounting No Bluetooth operated No Dimming DALI No Fit for workplace acc. EN 12464-1 No Luminaire may be covered with thermally insulating material No Dimming trailing edge No Dimming manufacturer’s proprietary system No Dimming leading edge No Dimming touch and dim No Dimming programmable No Dimming Zigbee No Dimming RF No · Technical Data Sheet – Click to Download
