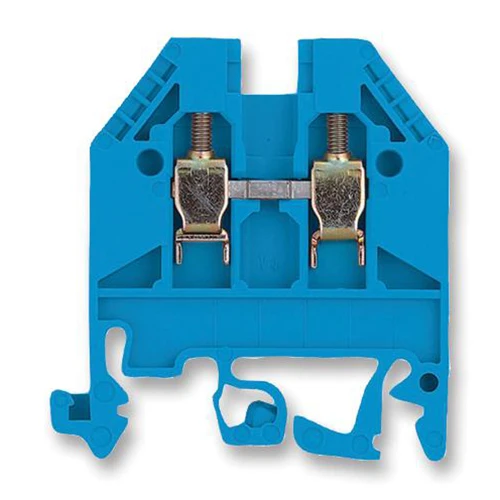

Wieland Feed-through terminal WK 2,5 / U BL / V0

Wieland Part.No.: 57.503.0055.6 Feed-through terminal WK 2,5 / U BL / V0 Feed-through terminal with Screw connection for mounting on TS 35 / TS 32, nominal cross section: 2.5 mm, width: 5 mm, color: blue · · · Nominal cross section 2.5 mm · · Number of levels 1 · · Number of clamp positions per level 2 · · Width/grid dimension 5 mm · · Rated current 24 A · · Rated voltage 1000 V · · Rated impulse voltage 8 kV · · Closing plate required Yes · · Cross section UL 22-12 AWG · · Mounting method DIN rail (top hat rail)/G-rail
