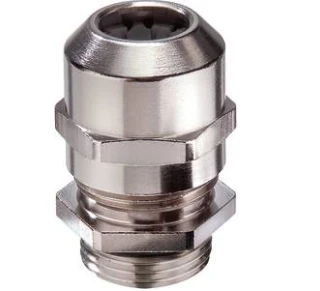

Wiska Cable Gland Emskv 16 M16 Brass Nickel Plated IP69 IP68 (5 Bar 30
£4.04 Incl. VAT
SPRINT® cable gland made of brass for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing by mounted O-ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. nThe SPRINT® system offers an extensive selection of accessories for special applications. · · · Gland Brass nickel-plated, Clamping cage Polyamide, Gasket EPDM · · Brass gland · · Cable entry · · O-Ring seal · · Indoor and outdoor use · · self-locking cap nut · · Easy install · · Temp Range -40 °C – 100 °C · · IP68 (5 bar 30 min) / IP69 · · cable gland accessories
Description
Technical Specifications Technical Specifications Cable gland Spanner width 20 mm Thread length 5 mm Pitch thread 1.5 mm RAL number 0 Nominal thread size metric/PG 16 Working temperature -40 – 100 °C Hexagon angular dimension 22 mm Suitable for cable outer diameter 4.5 – 10 mm Shock resistant Yes With strain relief Yes Separable (split) screw gland No Snapping in opening No Halogen free Yes For armoured cable No Glass fibre reinforced No Flat cable sealing No Locknut included No Multi cable sealing No Explosion-tested version No Screened No EMC-version No Bend radius protection/trumpet flare No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
