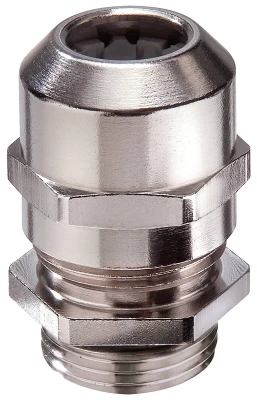

Wiska Cable Gland Emskv 25 M25 Brass Nickel Plated IP69 IP68 (5 Bar 30
Wiska Cable Gland Emskv 25 M25 Brass Nickel Plated IP69 IP68 (5 Bar 30
Wiska Cable Gland Emskv 25 M25 Brass Nickel Plated IP69 IP68 (5 Bar 30 - Image 2

Wiska Cable Gland Emskv 25 M25 Brass Nickel Plated IP69 IP68 (5 Bar 30

£7.87 Incl. VAT

SPRINT® cable gland made of brass for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing by mounted O-ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. nThe SPRINT® system offers an extensive selection of accessories for special applications. · · · Gland Brass nickel-plated, Clamping cage Polyamide, Gasket EPDM · · Brass gland · · Cable entry · · O-Ring seal · · Indoor and outdoor use · · self-locking cap nut · · Easy install · · Temp Range -40 °C – 100 °C · · IP68 (5 bar 30 min) / IP69 · · cable gland accessories

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10065003 Category: Brand: Product Code: 2500219779

Description

Technical Specifications  Technical Specifications Cable gland Spanner width 29 mm Nominal thread size metric/PG 25 Pitch thread 1.5 mm Hexagon angular dimension 32 mm Thread length 7 mm RAL number 0 Suitable for cable outer diameter 9 – 17 mm Working temperature -40 – 100 °C EMC-version No Shock resistant Yes Glass fibre reinforced No Explosion-tested version No With strain relief Yes Screened No Separable (split) screw gland No Snapping in opening No For armoured cable No Bend radius protection/trumpet flare No Flat cable sealing No Multi cable sealing No Locknut included No Halogen free Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
