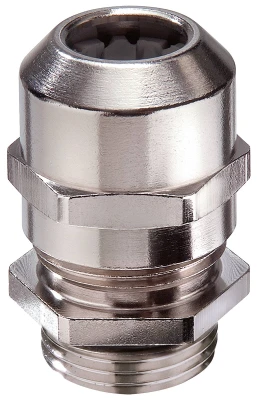

Wiska Cable Gland Emskv 32 M32 Brass Nickel Plated IP69 IP68 (5 Bar 30
£15.35 Incl. VAT
SPRINT® cable gland made of brass for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing by mounted O-ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. nThe SPRINT® system offers an extensive selection of accessories for special applications. · · · Gland Brass nickel-plated, Clamping cage Polyamide, Gasket EPDM · · Brass gland · · Cable entry · · O-Ring seal · · Indoor and outdoor use · · self-locking cap nut · · Easy install · · Temp Range -40 °C – 100 °C · · IP68 (5 bar 30 min) / IP69 · · cable gland accessories
Description
Technical Specifications Technical Specifications Cable gland RAL number 0 Spanner width 36 mm Pitch thread 1.5 mm Hexagon angular dimension 40 mm Nominal thread size metric/PG 32 Thread length 8 mm Working temperature -40 – 100 °C Halogen free Yes Suitable for cable outer diameter 13 – 21 mm Snapping in opening No Separable (split) screw gland No For armoured cable No Glass fibre reinforced No Flat cable sealing No Multi cable sealing No Locknut included No Explosion-tested version No Shock resistant Yes With strain relief Yes Screened No EMC-version No Bend radius protection/trumpet flare No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
