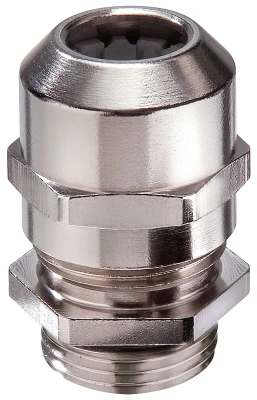

Wiska Cable Gland Emskv 40 M40 Brass Nickel Plated IP69 IP68 (5 Bar 30
Wiska Cable Gland Emskv 40 M40 Brass Nickel Plated IP69 IP68 (5 Bar 30
Wiska Cable Gland Emskv 40 M40 Brass Nickel Plated IP69 IP68 (5 Bar 30 - Image 2

Wiska Cable Gland Emskv 40 M40 Brass Nickel Plated IP69 IP68 (5 Bar 30

£24.94 Incl. VAT

SPRINT® cable gland made of brass for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing by mounted O-ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. nThe SPRINT® system offers an extensive selection of accessories for special applications. · · · Gland Brass nickel-plated, Clamping cage Polyamide, Gasket EPDM · · Brass gland · · Cable entry · · O-Ring seal · · Indoor and outdoor use · · self-locking cap nut · · Easy install · · Temp Range -40 °C – 100 °C · · IP68 (5 bar 30 min) / IP69 · · cable gland accessories

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10065005 Category: Brand: Product Code: 2500219781

Description

Technical Specifications  Technical Specifications Cable gland Spanner width 46 mm Thread length 8 mm Nominal thread size metric/PG 40 Hexagon angular dimension 51 mm RAL number 0 Pitch thread 1.5 mm Suitable for cable outer diameter 16 – 28 mm Working temperature -40 – 100 °C Shock resistant Yes With strain relief Yes Glass fibre reinforced No EMC-version No Screened No Explosion-tested version No Separable (split) screw gland No Snapping in opening No For armoured cable No Bend radius protection/trumpet flare No Flat cable sealing No Multi cable sealing No Locknut included No Halogen free Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
