Wiska Cable Gland Emskv-L 20 Emv-Z Long Thread EMC M20 Brass Nickel P
Wiska Cable Gland Emskv-L 20 Emv-Z Long Thread EMC M20 Brass Nickel P

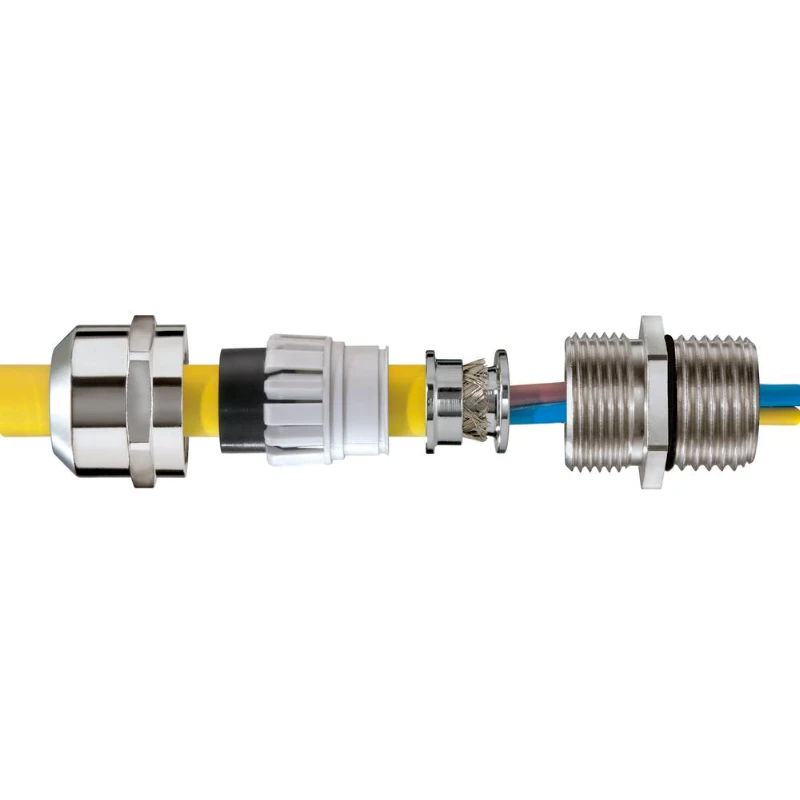

Wiska Cable Gland Emskv-L 20 Emv-Z Long Thread EMC M20 Brass Nickel P - Image 2

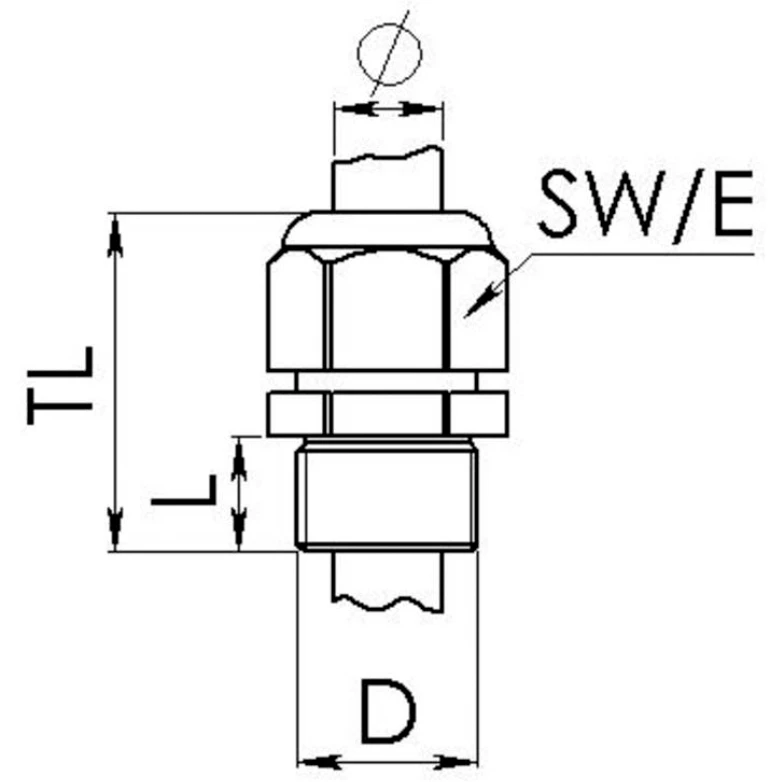

Wiska Cable Gland Emskv-L 20 Emv-Z Long Thread EMC M20 Brass Nickel P - Image 3

Wiska Cable Gland Emskv-L 20 Emv-Z Long Thread EMC M20 Brass Nickel P

£20.42 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10065184 Category: Brand: Product Code: 2501190297

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 Surface protection Nickel-plated Thread type Metric Model Straight Material Metal Material qualifier Brass Nominal thread size metric/PG 20 Spanner width 24 mm Pitch thread 1.5 mm Suitable for cable outer diameter 6 mm Working temperature -40 °C Glass fibre reinforced No Bend radius protection/trumpet flare No Separable (split) screw gland No Explosion-tested version No Screened Yes Shock resistant Yes With strain relief Yes Halogen free Yes EMC-version Yes Multi cable sealing No Flat cable sealing No Locknut included No
