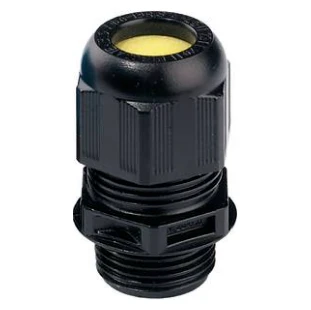

Wiska Cable Gland Eske/1-E 16 Increased Safety Atex M16 Black Polyami
£1.96 Incl. VAT
SPRINT Ex cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing with a connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.nApproved according to IEC EX and ATEX. · · · Protection Rating – IP66/IP68 (5 bar 30 min) · · M16 · · Gland Polyamide / gasket EPDM · · Halogen Free / UV Resistant
Description
Technical Specifications Technical Specifications Cable gland Material qualifier Polyamide (PA) Surface protection Untreated Thread type Metric Model Straight For ATEX classification, Ex-zone gas 1, 2 Colour Black Material Plastic For ATEX classification, Ex-zone dust 21, 22 Thread length 9 mm RAL number 9005 Pitch thread 1.5 mm Nominal thread size metric/PG 16 Spanner width 20 mm Suitable for cable outer diameter 4.5 mm With strain relief Yes Working temperature -40 °C Bend radius protection/trumpet flare No Separable (split) screw gland No Flat cable sealing No Multi cable sealing No Halogen free Yes Locknut included No Glass fibre reinforced No Explosion-tested version Yes Shock resistant Yes EMC-version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
