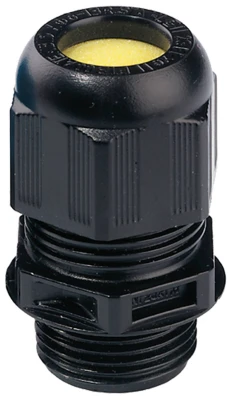

Wiska Cable Gland Eske/1-E 25 Increased Safety Atex M25 Black Polyami
£2.54 Incl. VAT
SPRINT Ex cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing with a connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.nApproved according to IEC EX and ATEX. · · · Protection Rating – IP66/IP68 (5 bar 30 min) · · M25 · · Gland Polyamide / gasket EPDM · · Halogen Free / UV Resistant
Description
Technical Specifications Technical Specifications Cable gland Type of sealing Sealing ring Material qualifier Polyamide (PA) Degree of protection (IP rating) IP68 Thread type Metric Model Straight Material Plastic For ATEX classification, Ex-zone gas 1, 2 Surface protection Untreated Colour Black RAL number 9005 For ATEX classification, Ex-zone dust 21, 22 Spanner width 29 mm Thread length 10 mm Nominal thread size metric/PG 25 Pitch thread 1.5 mm Hexagon angular dimension 32 mm Working temperature -40 °C Suitable for cable outer diameter 10 mm Halogen free Yes Shock resistant Yes With strain relief Yes Bend radius protection/trumpet flare No Explosion-tested version Yes Glass fibre reinforced No Multi cable sealing No EMC-version No Flat cable sealing No Separable (split) screw gland No Locknut included No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
