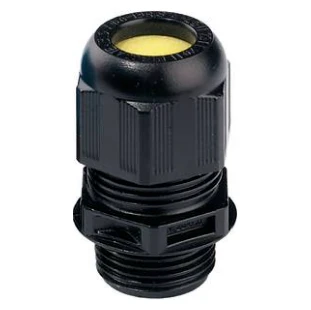

Wiska Cable Gland Eske/1-E 32 Increased Safety Atex M32 Black Polyami
Wiska Cable Gland Eske/1-E 32 Increased Safety Atex M32 Black Polyami
Wiska Cable Gland Eske/1-E 32 Increased Safety Atex M32 Black Polyami - Image 2

Wiska Cable Gland Eske/1-E 32 Increased Safety Atex M32 Black Polyami

£3.61 Incl. VAT

SPRINT Ex cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing with a connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.nApproved according to IEC EX and ATEX. · · · Protection Rating – IP66/IP68 (5 bar 30 min) · · M32 · · Gland Polyamide / gasket EPDM · · Halogen Free / UV Resistant

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10103367 Category: Brand: Product Code: 2500219691

Description

Technical Specifications  Technical Specifications Cable gland Surface protection Untreated Material qualifier Polyamide (PA) Model Straight For ATEX classification, Ex-zone gas 1, 2 Thread type Metric Colour Black For ATEX classification, Ex-zone dust 21, 22 Material Plastic Thread length 12 mm Pitch thread 1.5 mm Nominal thread size metric/PG 32 Spanner width 36 mm RAL number 9005 Working temperature -40 °C Suitable for cable outer diameter 13 mm With strain relief Yes Bend radius protection/trumpet flare No Flat cable sealing No Separable (split) screw gland No Multi cable sealing No Halogen free Yes Locknut included No Glass fibre reinforced No Shock resistant Yes Explosion-tested version Yes EMC-version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
