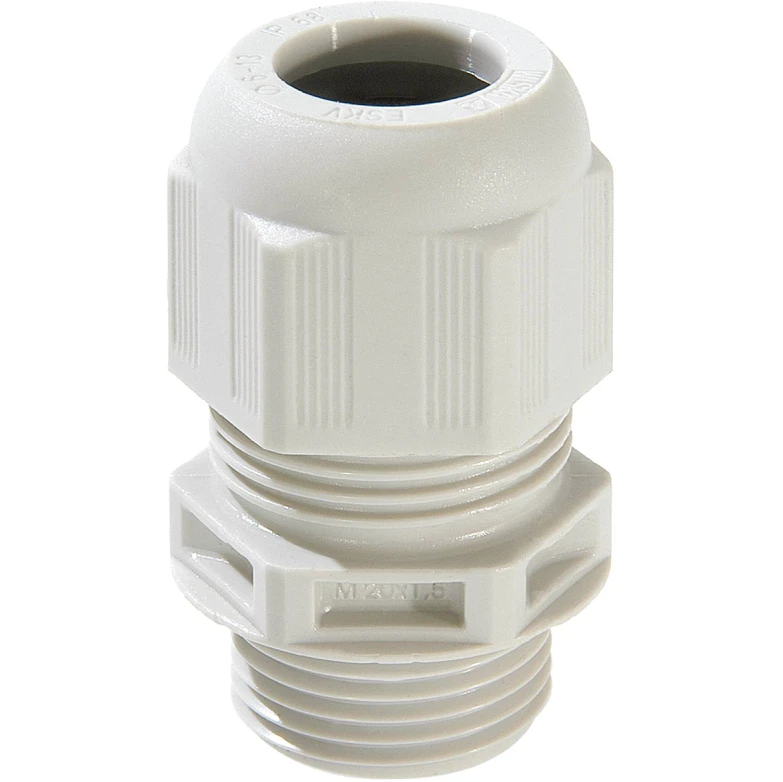

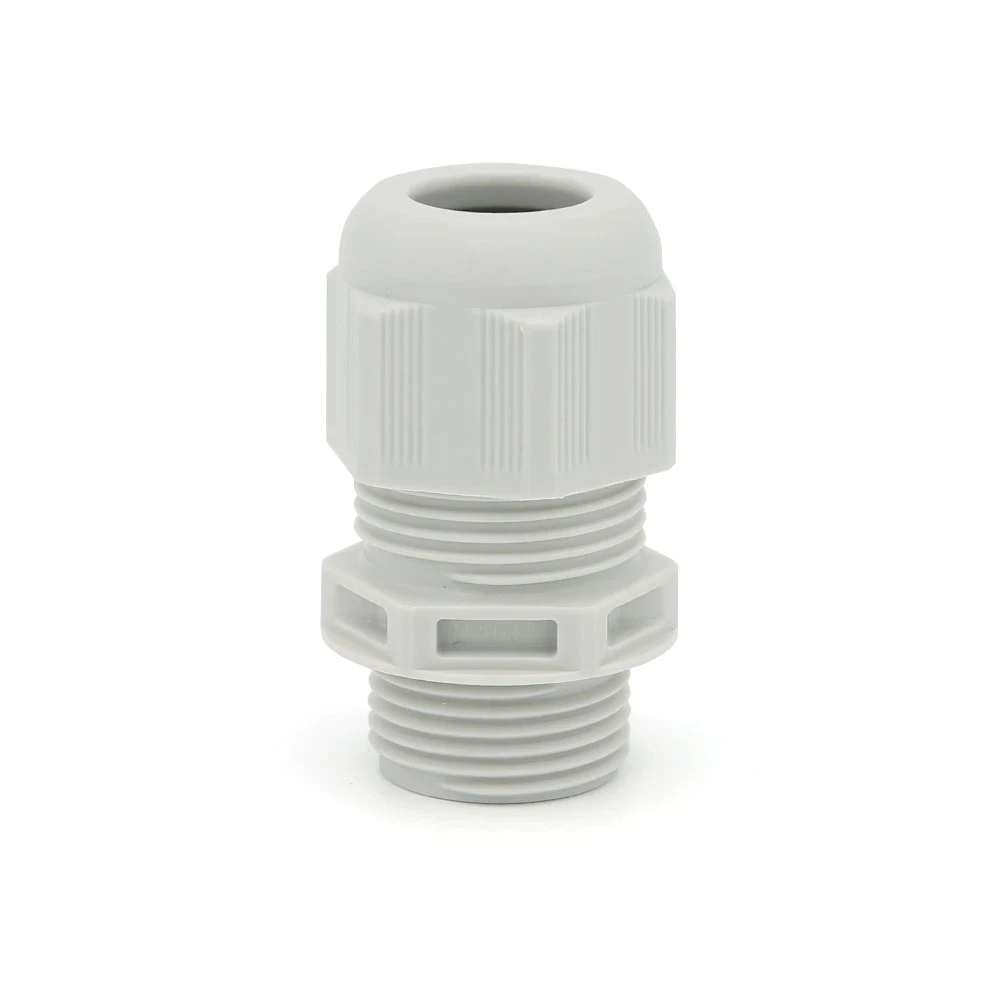

Wiska Cable Gland ESKV 20 M20 Grey Polyamide IP69 IP68 (5 Bar 30 Min)
Wiska Cable Gland ESKV 20 M20 Grey Polyamide IP69 IP68 (5 Bar 30 Min)
Wiska Cable Gland ESKV 20 M20 Grey Polyamide IP69 IP68 (5 Bar 30 Min) - Image 2
Wiska Cable Gland ESKV 20 M20 Grey Polyamide IP69 IP68 (5 Bar 30 Min) - Image 3
Wiska Cable Gland ESKV 20 M20 Grey Polyamide IP69 IP68 (5 Bar 30 Min) - Image 4

Wiska Cable Gland ESKV 20 M20 Grey Polyamide IP69 IP68 (5 Bar 30 Min)

£1.20 Incl. VAT

Wiska UK 10066412 SPRINT Cable Gland ESKV 20 M20 Grey Polyamide IP69 IP68 (5 bar 30 min) · · · Product: Gland · · Type: threaded · · Pack Quantity: 50 · · Ingress Protection: IP68 · · Gland Material: Polyamide · · Gland Colour: Grey · · Gland Size: M20 mm · · Length Min Max: 36 | 45 mm · · Standards: ROHS UL (Canada and US) VDE CPT GL · · IP68 (5 bar 30 min) / IP69 K

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10066412 Categories: , , Brand: Product Code: 2500220168

Description

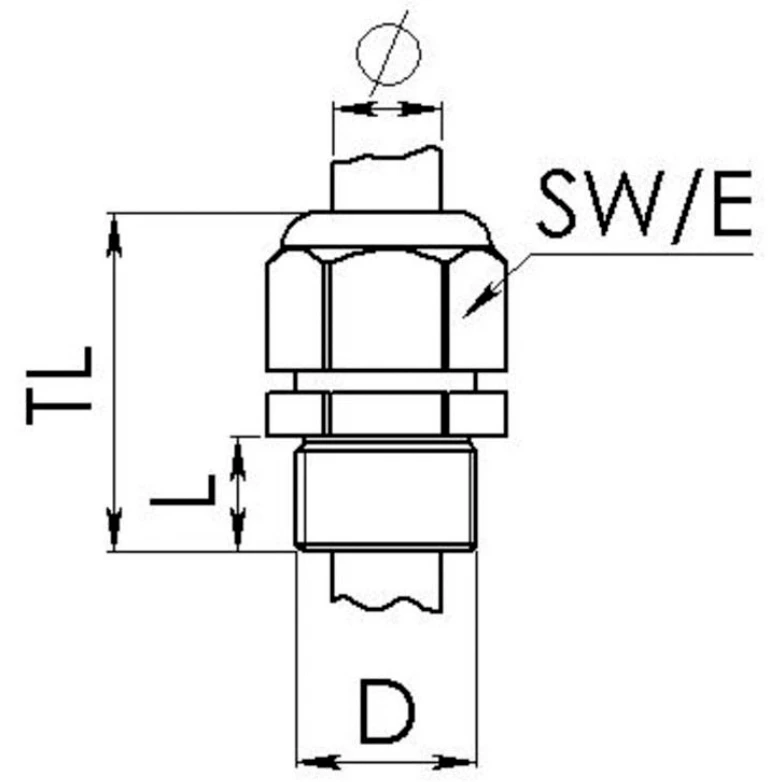

Technical Specifications  Technical Specifications Cable gland Nominal thread size metric/PG 20 RAL number 7035 Hexagon angular dimension 27 mm Pitch thread 1.5 mm Thread length 10 mm Working temperature -40 – 100 °C Spanner width 24 mm Explosion-tested version No Suitable for cable outer diameter 6 – 13 mm Glass fibre reinforced No EMC-version No Screened No Shock resistant Yes Bend radius protection/trumpet flare No With strain relief Yes Halogen free Yes Flat cable sealing No Multi cable sealing No Locknut included No Separable (split) screw gland No Snapping in opening No For armoured cable No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
