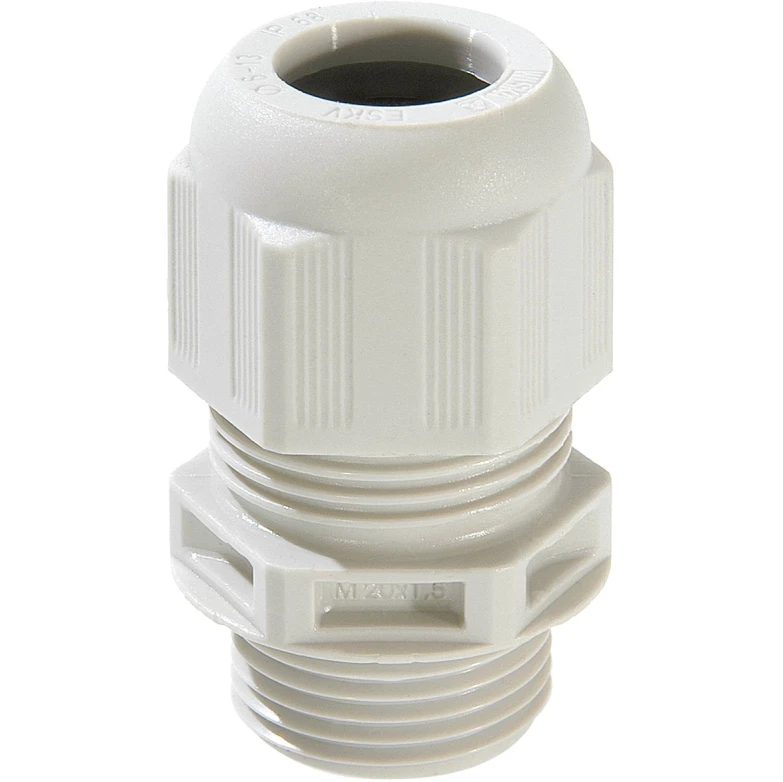

Wiska Cable Gland Eskv 25 M25 Grey Polyamide IP69 IP68 (5 Bar 30 Min
Wiska Cable Gland Eskv 25 M25 Grey Polyamide IP69 IP68 (5 Bar 30 Min
Wiska Cable Gland Eskv 25 M25 Grey Polyamide IP69 IP68 (5 Bar 30 Min - Image 2
Wiska Cable Gland Eskv 25 M25 Grey Polyamide IP69 IP68 (5 Bar 30 Min - Image 3

Wiska Cable Gland Eskv 25 M25 Grey Polyamide IP69 IP68 (5 Bar 30 Min

£1.27 Incl. VAT

Wiska UK 10066413 SPRINT Cable Gland ESKV 25 M25 Grey Polyamide IP69 IP68 (5 bar 30 min) · · · Product: Gland · · Type: Flameproof · · Pack Quantity: 50 · · Ingress Protection: IP68 · · Gland Material: Polyamide · · Gland Colour: Grey · · Gland Size: M25 mm · · Standards: EN50262 EN 60695-2-11 UL (Canada and US) VDE · · cable glands are applicable up to -60 °C. · · IP68 (5 bar 30 min) / IP69 K

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10066413 Category: Brand: Product Code: 2500220169

Description

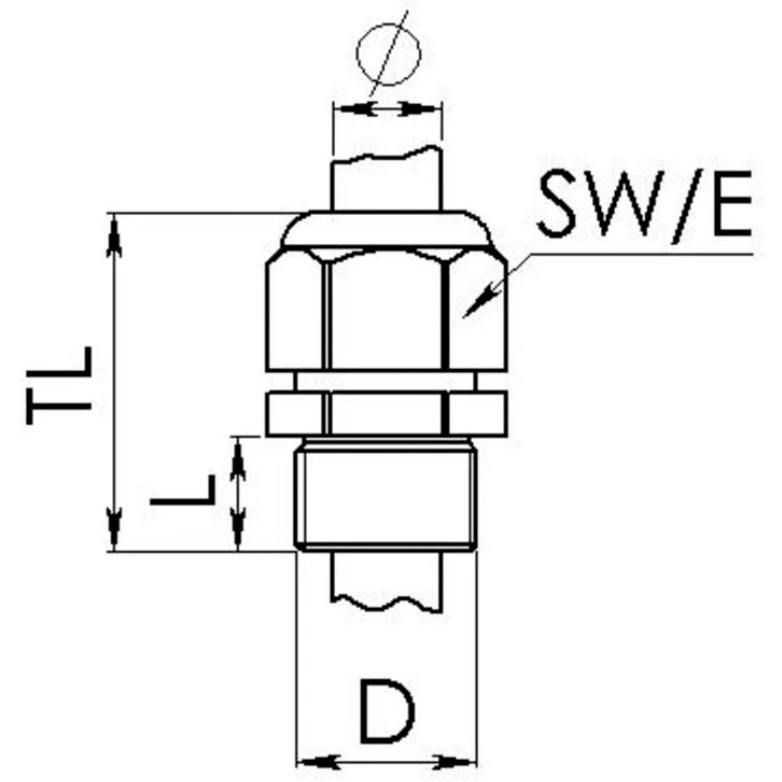

Technical Specifications  Technical Specifications Cable gland Nominal thread size metric/PG 25 RAL number 7035 Hexagon angular dimension 32 mm Pitch thread 1.5 mm Thread length 10 mm Working temperature -40 – 100 °C Spanner width 29 mm Shock resistant Yes Suitable for cable outer diameter 9 – 17 mm With strain relief Yes Explosion-tested version No Screened No EMC-version No Bend radius protection/trumpet flare No Glass fibre reinforced No Flat cable sealing No Multi cable sealing No Locknut included No Separable (split) screw gland No Snapping in opening No For armoured cable No Halogen free Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
