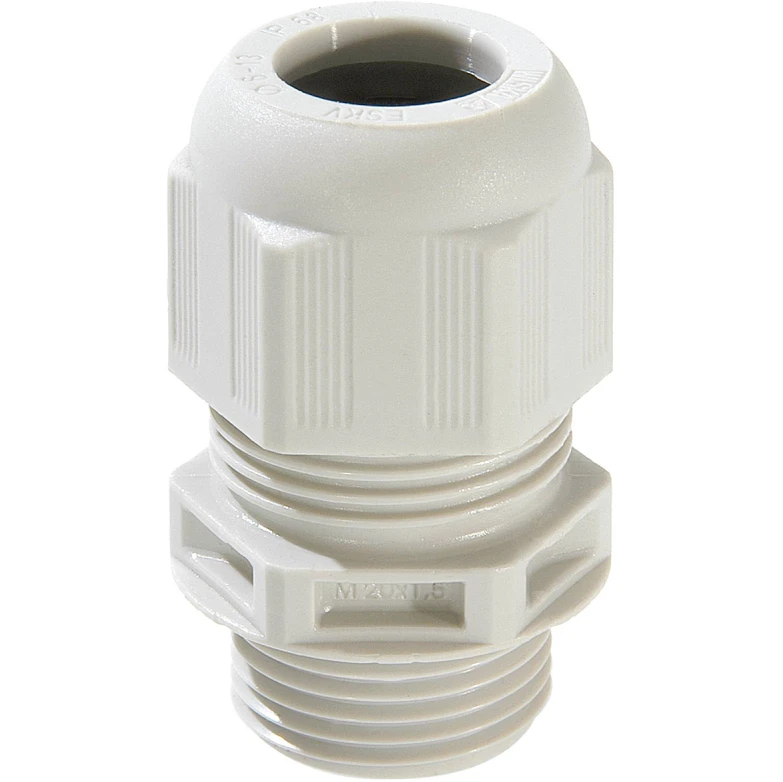

Wiska Cable Gland Eskv 63 M63 Grey Polyamide IP69 IP68 (5 Bar 30 Min
Wiska Cable Gland Eskv 63 M63 Grey Polyamide IP69 IP68 (5 Bar 30 Min
Wiska Cable Gland Eskv 63 M63 Grey Polyamide IP69 IP68 (5 Bar 30 Min - Image 2
Wiska Cable Gland Eskv 63 M63 Grey Polyamide IP69 IP68 (5 Bar 30 Min - Image 3

Wiska Cable Gland Eskv 63 M63 Grey Polyamide IP69 IP68 (5 Bar 30 Min

£12.42 Incl. VAT

SPRINT® cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.nThe SPRINT® system offers a comprehensive selection of accessories for special applications. · · · Installation indoors & outdoors · · Screw Polyamide, Gasket EPDM · · Cable entry · · clamping cage · · self-locking cap nut · · Easy to install · · Effective pressure equalization · · Available as PG, metric and National Pipe Thread threads · · cable glands are applicable up to -60 °C. · · IP68 (5 bar 30 min) / IP69 K

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10066417 Category: Brand: Product Code: 2500220176

Description

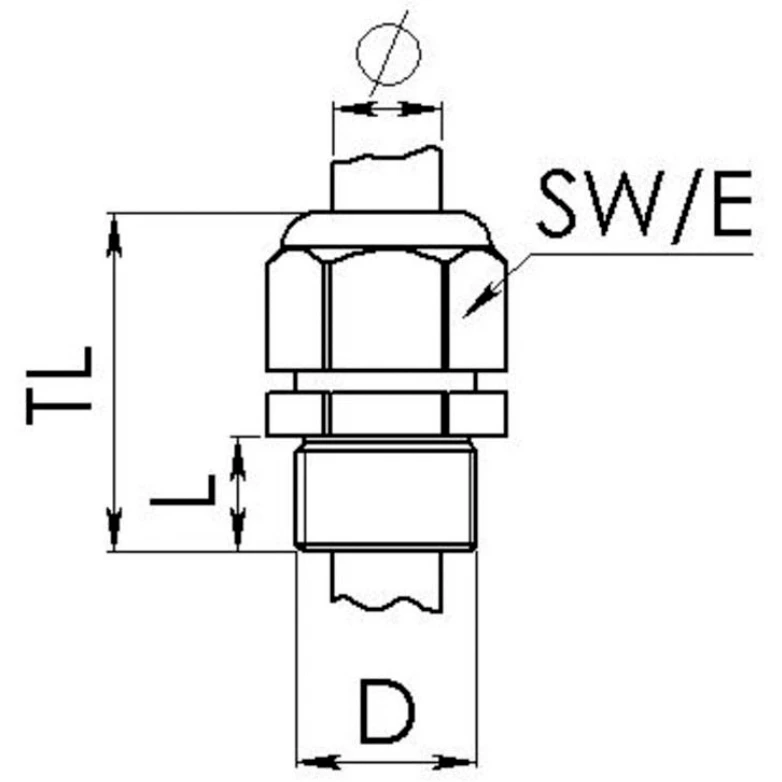

Technical Specifications  Technical Specifications Cable gland Nominal thread size metric/PG 63 Hexagon angular dimension 75 mm Pitch thread 1.5 mm Thread length 15 mm RAL number 7035 Spanner width 68 mm Working temperature -40 – 100 °C Suitable for cable outer diameter 34 – 48 mm Bend radius protection/trumpet flare No Halogen free Yes Shock resistant Yes With strain relief Yes Glass fibre reinforced No Explosion-tested version No Screened No Separable (split) screw gland No Snapping in opening No For armoured cable No EMC-version No Flat cable sealing No Multi cable sealing No Locknut included No
