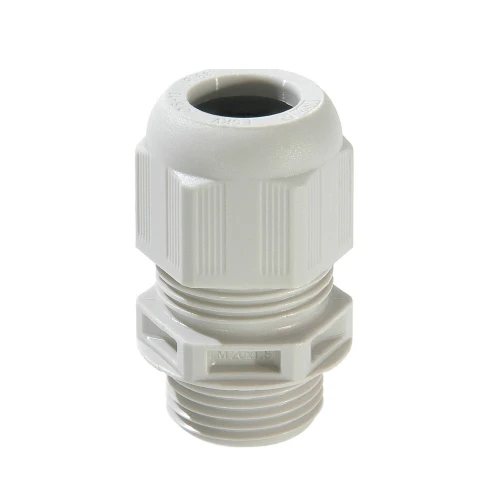

Wiska Cable Gland Eskv-F 20 IP Flame Retardant M20 Grey Polyamide Ip
£0.65 Incl. VAT
SPRINT® cable gland made of high-quality, flame-retardant polyamide 6.6 for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.nThe SPRINT® system offers a comprehensive selection of accessories for special applications. · · · Installation indoors & outdoors · · Gland Polyamide, flame-retardant, Gasket EPDM · · Cable entry · · Flame retardant · · self-locking cap nut · · Easy to install · · Temp Range -40 °C – 100 °C · · Vibration protection · · Light grey · · IP69 / IP68 (5 bar 30 min)
Description
Technical Specifications Technical Specifications Cable gland Spanner width 24 mm Nominal thread size metric/PG 20 Hexagon angular dimension 27 mm Pitch thread 1.5 mm Thread length 10 mm RAL number 7035 Working temperature -40 – 100 °C Suitable for cable outer diameter 6 – 13 mm Separable (split) screw gland No Snapping in opening No For armoured cable No Glass fibre reinforced No Flat cable sealing No Multi cable sealing No Locknut included No Explosion-tested version No Shock resistant Yes With strain relief Yes Screened No EMC-version No Bend radius protection/trumpet flare No Halogen free Yes
