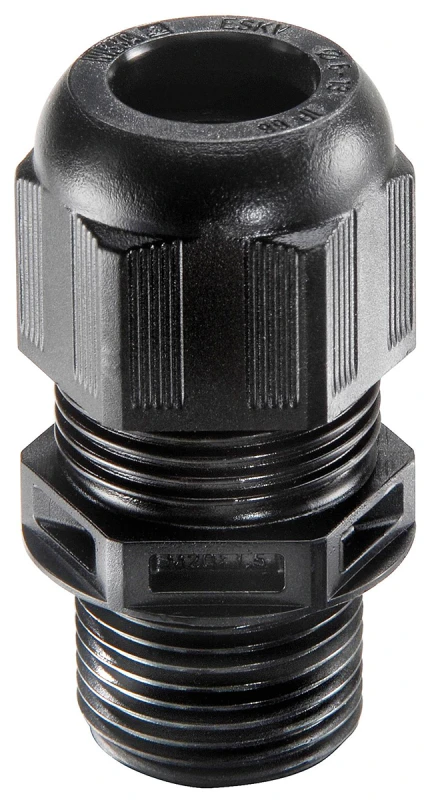

Wiska Cable Gland Eskv-L 20 Long Threaded M20 Black Polyamide IP69 Ip
£0.54 Incl. VAT
SPRINT® cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of silicone and are characterised by excellent resistance to water, ozone, UV radiation, chemicals and low temperatures. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.nThe SPRINT® system offers an extensive selection of accessories for special applications. · · · Installation indoors & outdoors · · Gland Polyamide, Gasket EPDM · · Cable entry · · Long thread · · self-locking cap nut · · Easy to install · · Temp Range -40 °C – 100 °C · · Vibration protection · · Black · · IP69 / IP68 (5 bar 30 min)
Description

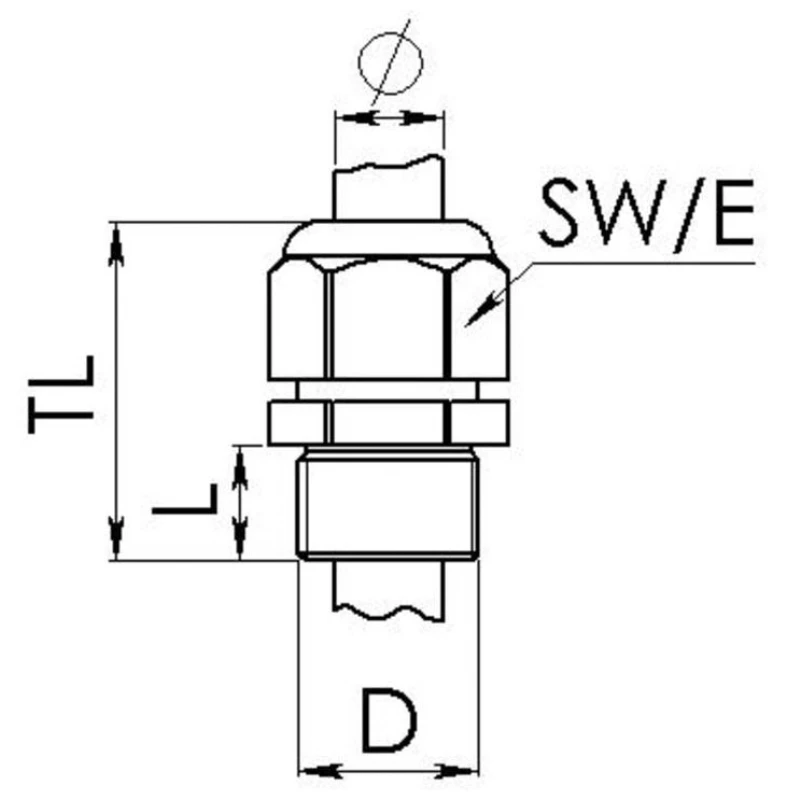

Technical Specifications Technical Specifications Cable gland Spanner width 24 mm Thread length 15 mm RAL number 9005 Nominal thread size metric/PG 20 Pitch thread 1.5 mm Working temperature -40 – 100 °C Hexagon angular dimension 27 mm Bend radius protection/trumpet flare No Suitable for cable outer diameter 6 – 13 mm Shock resistant Yes With strain relief Yes Glass fibre reinforced No EMC-version No Screened No Halogen free Yes Explosion-tested version No Flat cable sealing No Multi cable sealing No Locknut included No Separable (split) screw gland No Snapping in opening No For armoured cable No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
