Wiska Cable Gland Eskv-L 25 Long Threaded M25 Black Polyamide IP69 Ip
Wiska Cable Gland Eskv-L 25 Long Threaded M25 Black Polyamide IP69 Ip
Wiska Cable Gland Eskv-L 25 Long Threaded M25 Black Polyamide IP69 Ip - Image 2
Wiska Cable Gland Eskv-L 25 Long Threaded M25 Black Polyamide IP69 Ip - Image 3

Wiska Cable Gland Eskv-L 25 Long Threaded M25 Black Polyamide IP69 Ip

£0.60 Incl. VAT

SPRINT® cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of silicone and are characterised by excellent resistance to water, ozone, UV radiation, chemicals and low temperatures. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.nThe SPRINT® system offers an extensive selection of accessories for special applications. · · · Installation indoors & outdoors · · Gland Polyamide, Gasket EPDM · · Cable entry · · Long thread · · self-locking cap nut · · Easy to install · · Temp Range -40 °C – 100 °C · · Vibration protection · · Black · · IP69 / IP68 (5 bar 30 min)

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10066503 Category: Brand: Product Code: 2500829033

Description

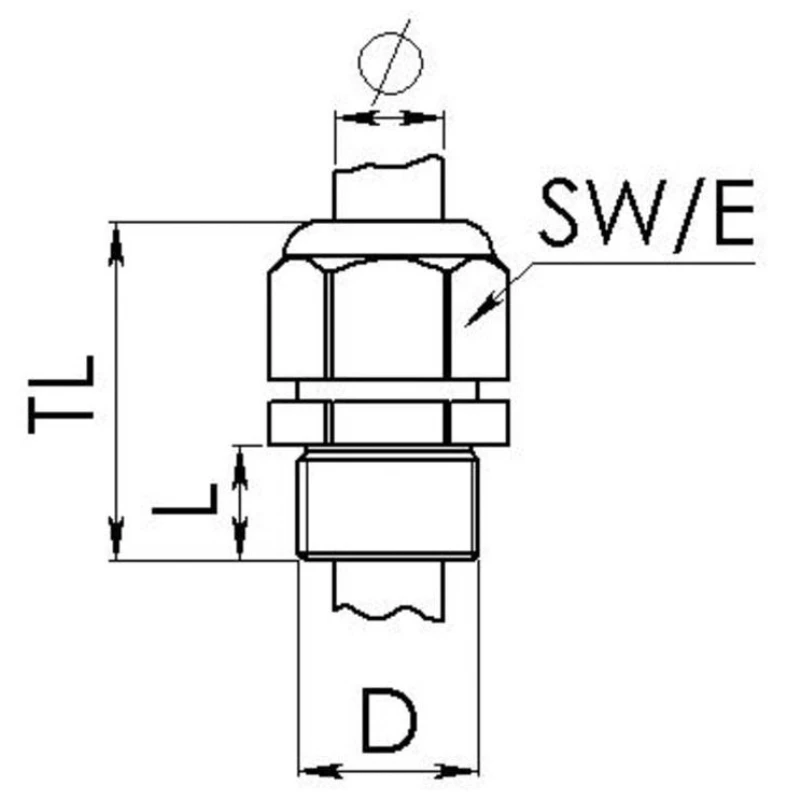

Technical Specifications  Technical Specifications Cable gland RAL number 9005 Pitch thread 1.5 mm Nominal thread size metric/PG 25 Hexagon angular dimension 32 mm Thread length 15 mm Spanner width 29 mm Working temperature -40 – 100 °C Suitable for cable outer diameter 9 – 17 mm Bend radius protection/trumpet flare No Glass fibre reinforced No Screened No Explosion-tested version No EMC-version No Flat cable sealing No Multi cable sealing No Locknut included No Separable (split) screw gland No Snapping in opening No For armoured cable No Shock resistant Yes With strain relief Yes Halogen free Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
