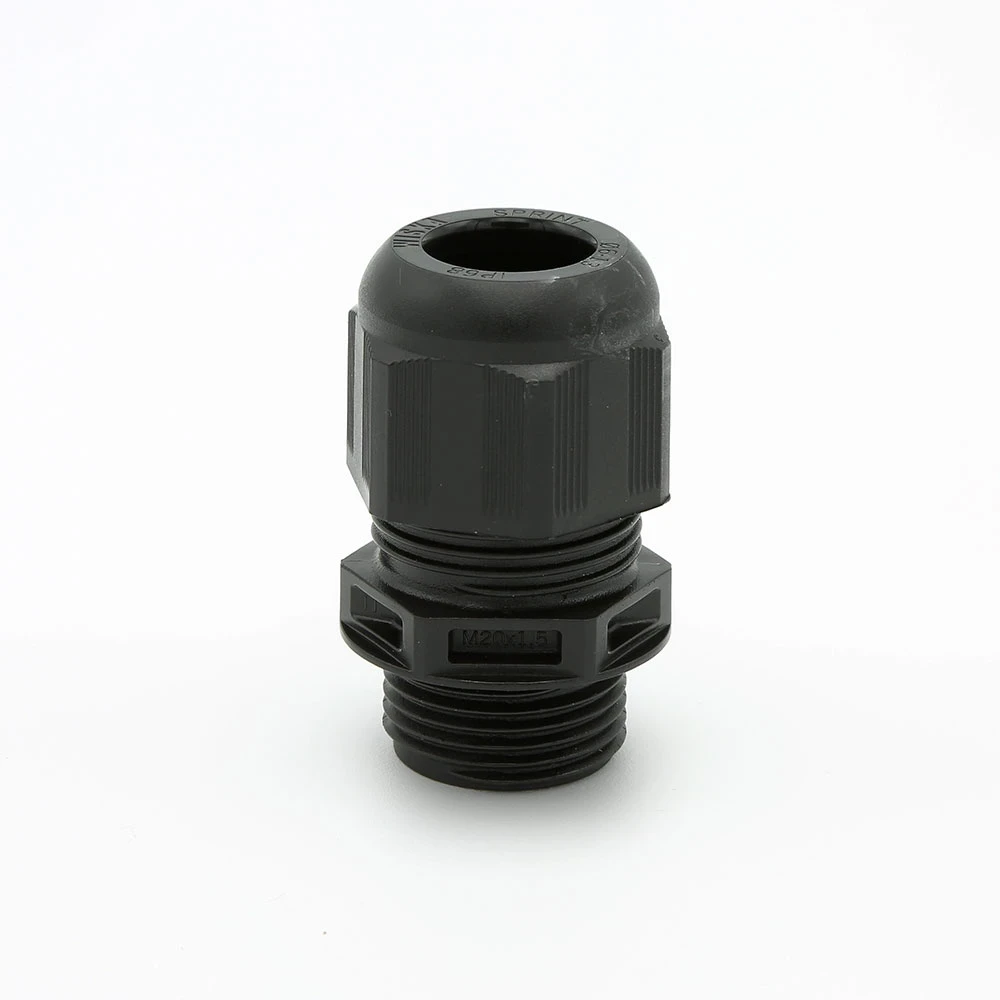

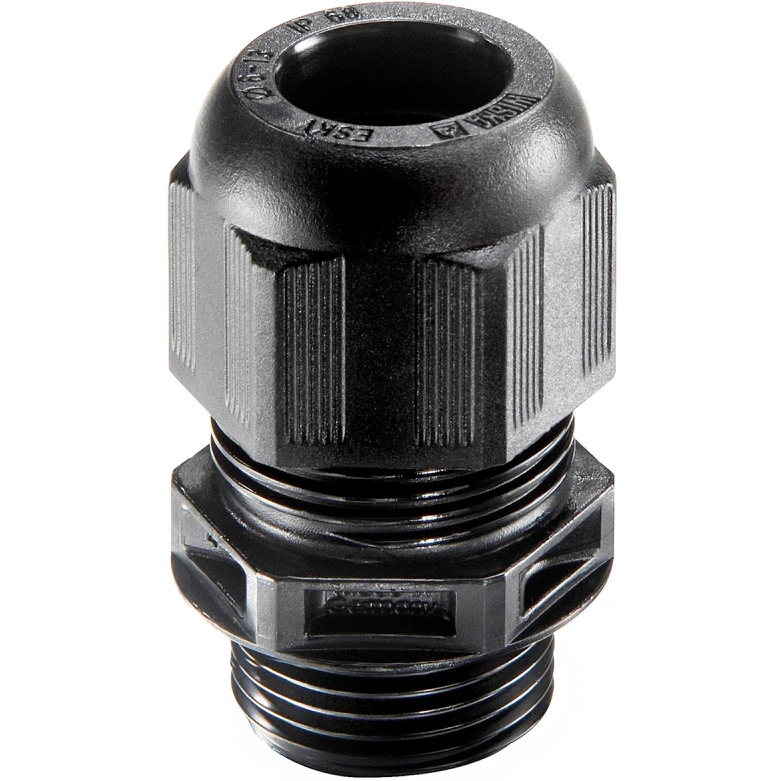

Wiska Cable Gland ESKV20 M20 Black Polyamide IP69 IP68 (5 Bar 30 Min)
Wiska Cable Gland ESKV20 M20 Black Polyamide IP69 IP68 (5 Bar 30 Min)
Wiska Cable Gland ESKV20 M20 Black Polyamide IP69 IP68 (5 Bar 30 Min) - Image 2
Wiska Cable Gland ESKV20 M20 Black Polyamide IP69 IP68 (5 Bar 30 Min) - Image 3
Wiska Cable Gland ESKV20 M20 Black Polyamide IP69 IP68 (5 Bar 30 Min) - Image 4

Wiska Cable Gland ESKV20 M20 Black Polyamide IP69 IP68 (5 Bar 30 Min)

£1.30 Incl. VAT

Wiska UK 10066122 SPRINT Cable Gland ESKV20 M20 Black Polyamide IP69 IP68 (5 bar 30 min) · · · Product: Gland · · Type: threaded · · Pack Quantity: 50 · · Ingress Protection: IP68 · · Gland Material: Polyamide · · Gland Colour: Black · · Gland Size: M20 mm · · Length Min Max: 36 | 45 mm · · Standards: ROHS UL (Canada and US) VDE CPT GL · · IP68 (5 bar 30 min) / IP69 K

898 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10066122 Categories: , , Brand: Part Number: 2500220096

Description

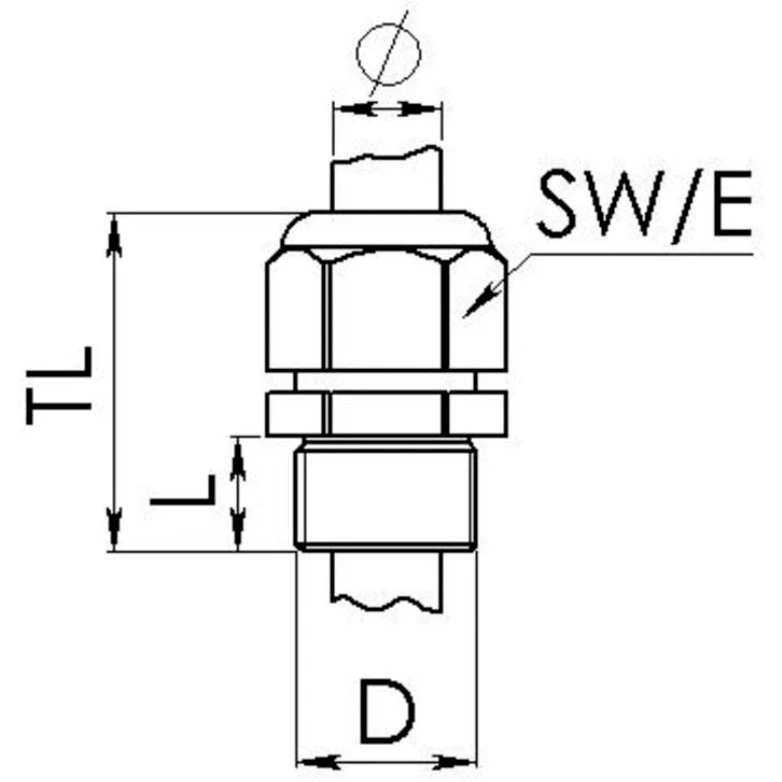

Technical Specifications  Technical Specifications Cable gland Pitch thread 1.5 mm RAL number 9005 Thread length 10 mm Wrench width 24 mm Nominal thread size metric/PG 20 Hexagon angular dimension 27 mm Working temperature -40 – 100 °C For armoured cable No Flat cable sealing No Bend radius protection/trumpet flare No Explosion-tested version No Snapping in opening No Separable (split) screw gland No Halogen free Yes Suitable for cable outer diameter 6 – 13 mm Multi cable sealing No Locknut included No Glass fibre reinforced No Screened No EMC-version No Shock resistant Yes With strain relief Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
