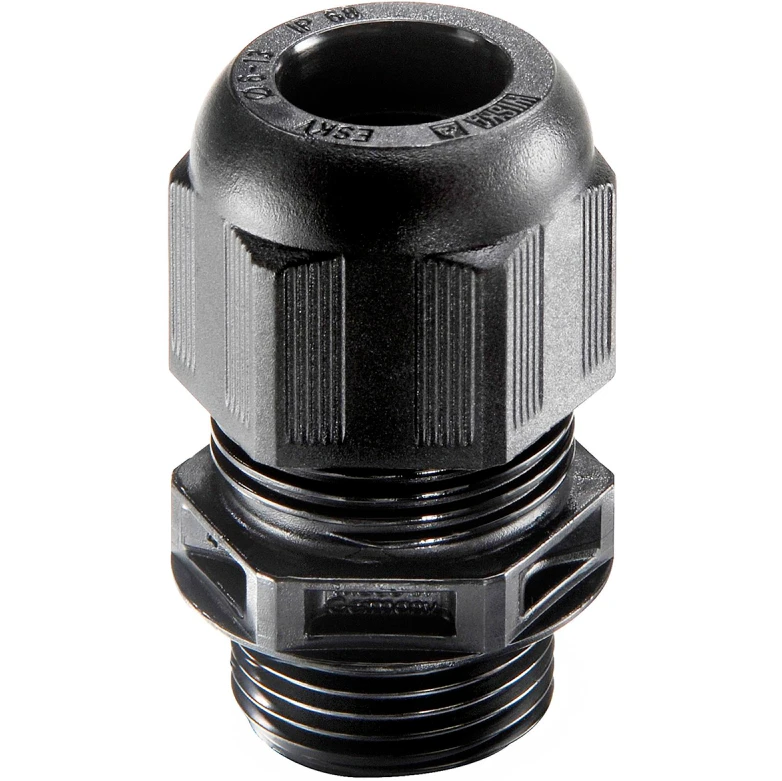

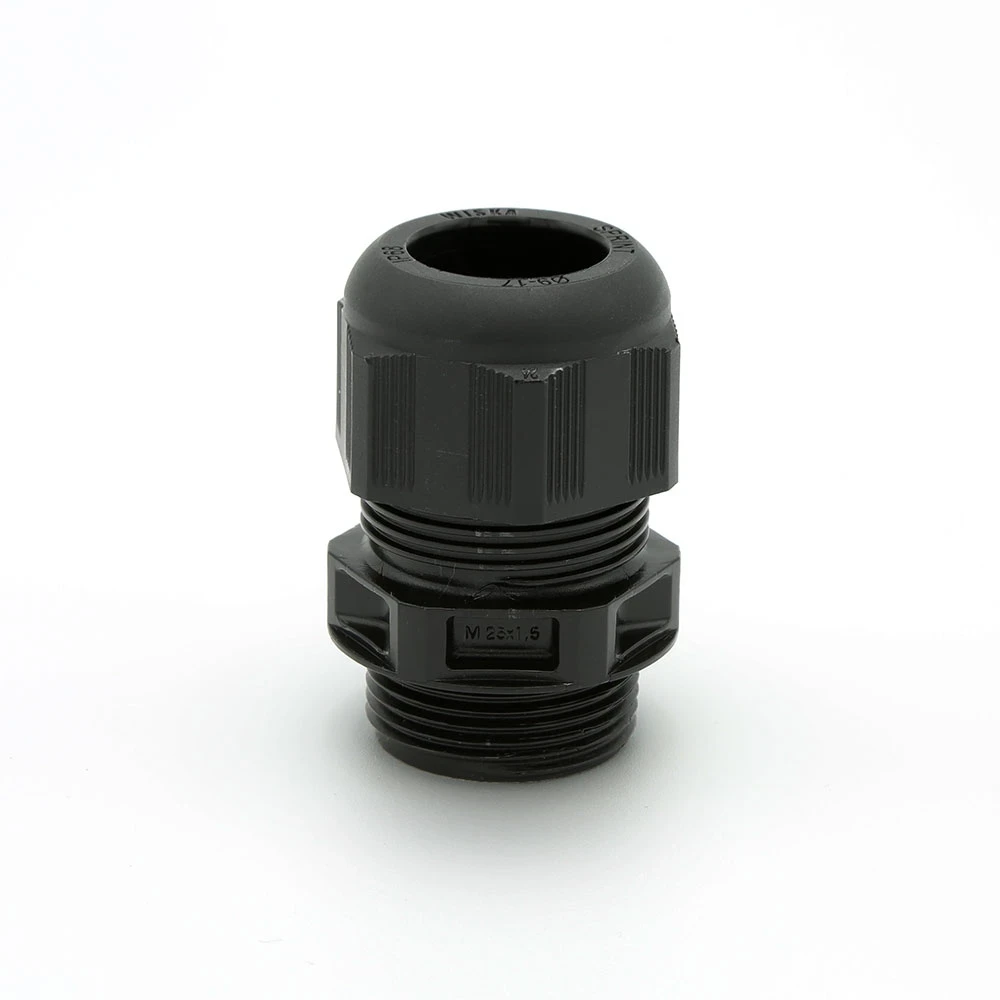

Wiska Cable Gland ESKV25 M25 Black Polyamide IP69 IP68 (5 Bar 30 Min)
£1.27 Incl. VAT
Wiska UK 10066123 SPRINT Cable Gland ESKV25 M25 Black Polyamide IP69 IP68 (5 bar 30 min) · · · Product: Gland · · Type: Flameproof · · Pack Quantity: 50 · · Ingress Protection: IP68 · · Gland Material: Polyamide · · Gland Colour: Black · · Gland Size: M25 mm · · Standards: EN50262 EN 60695-2-11 UL (Canada and US) VDE · · cable glands are applicable up to -60 °C. · · IP68 (5 bar 30 min) / IP69 K
✓ In stock – Delivery in 1–2 days
Description

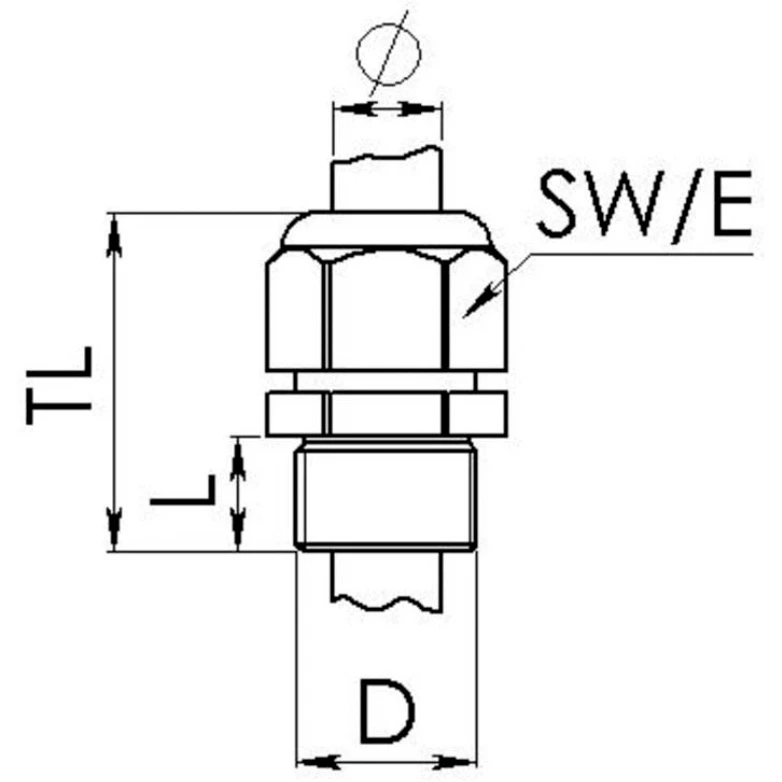

Technical Specifications Technical Specifications Cable gland Spanner width 29 mm Thread length 10 mm Nominal thread size metric/PG 25 Pitch thread 1.5 mm RAL number 9005 Hexagon angular dimension 32 mm Suitable for cable outer diameter 9 – 17 mm Working temperature -40 – 100 °C Explosion-tested version No Shock resistant Yes Glass fibre reinforced No EMC-version No With strain relief Yes Bend radius protection/trumpet flare No Screened No Separable (split) screw gland No Snapping in opening No For armoured cable No Flat cable sealing No Multi cable sealing No Locknut included No Halogen free Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
