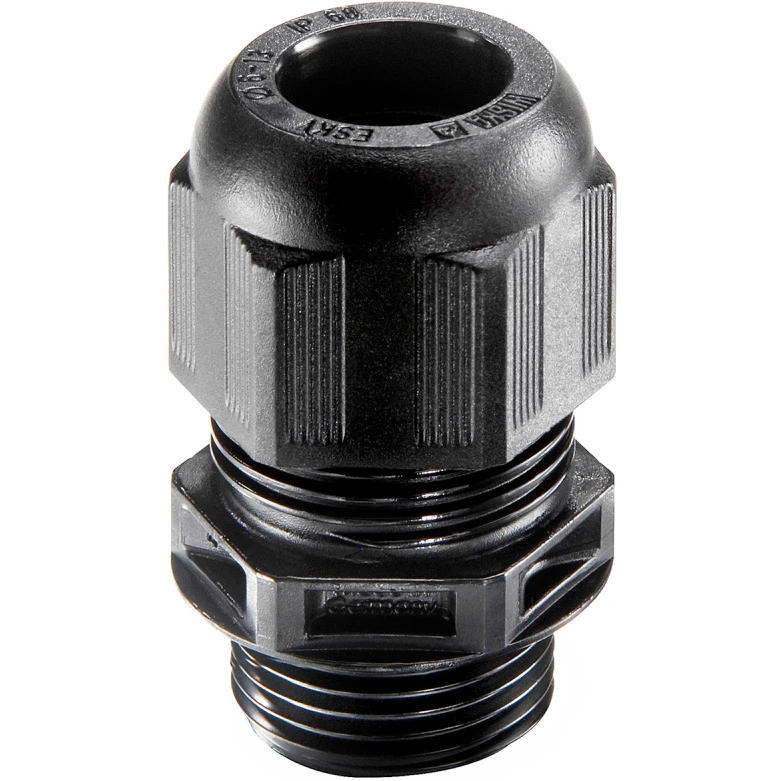

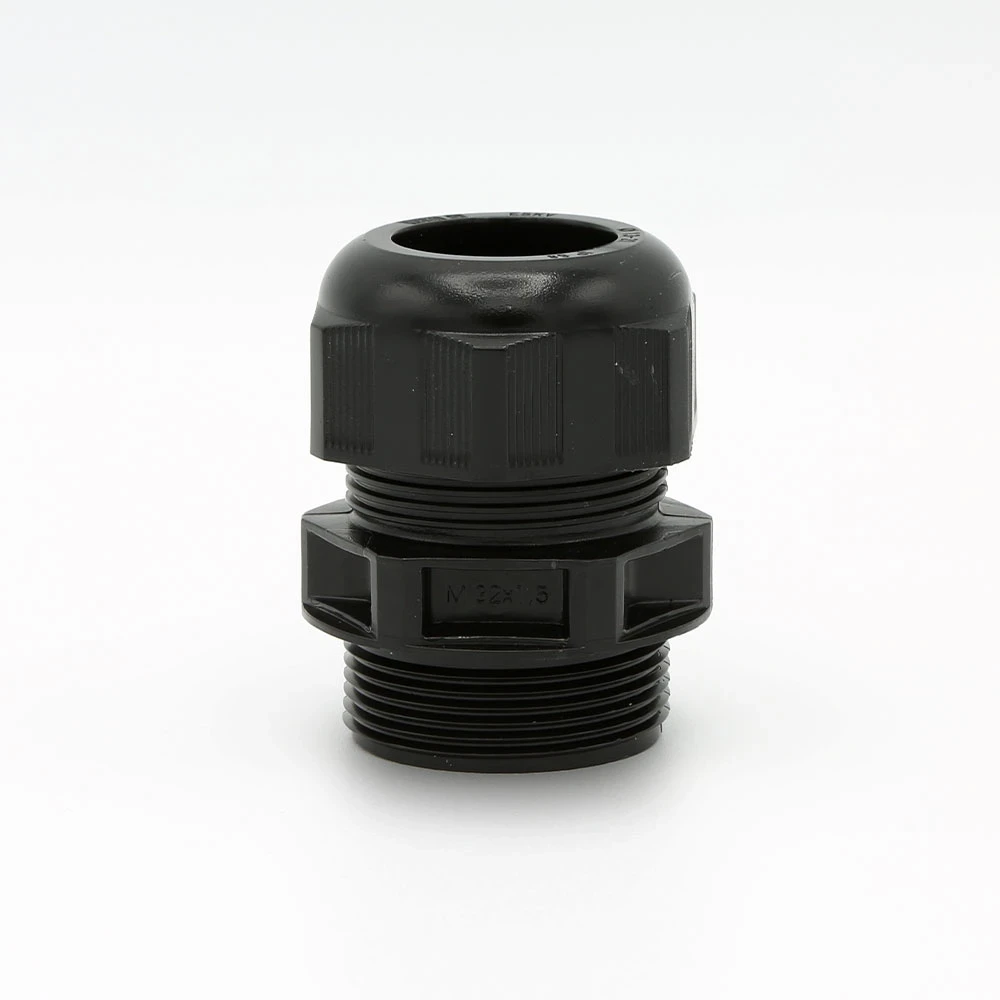

Wiska Cable Gland Eskv32 M32 Black Polyamide IP69 IP68 (5 Bar 30 Min)
Wiska Cable Gland Eskv32 M32 Black Polyamide IP69 IP68 (5 Bar 30 Min)
Wiska Cable Gland Eskv32 M32 Black Polyamide IP69 IP68 (5 Bar 30 Min) - Image 2
Wiska Cable Gland Eskv32 M32 Black Polyamide IP69 IP68 (5 Bar 30 Min) - Image 3
Wiska Cable Gland Eskv32 M32 Black Polyamide IP69 IP68 (5 Bar 30 Min) - Image 4

Wiska Cable Gland Eskv32 M32 Black Polyamide IP69 IP68 (5 Bar 30 Min)

£2.40 Incl. VAT

Wiska UK 10066124 SPRINT Cable Gland ESKV32 M32 Black Polyamide IP69 IP68 (5 bar 30 min) · · · Product: Gland · · Qualifier: Plastic · · Pack Quantity: 25 · · Ingress Protection: IP68 · · Gland Material: Polyamide · · Gland Colour: Black · · Gland Size: M32 mm · · Length Min Max: 51 mm · · Standards: ROHS UL (Canada and US) GL VDE · · IP68 (5 bar 30 min) / IP69 K

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10066124 Categories: , , Brand: Product Code: 2500220098

Description

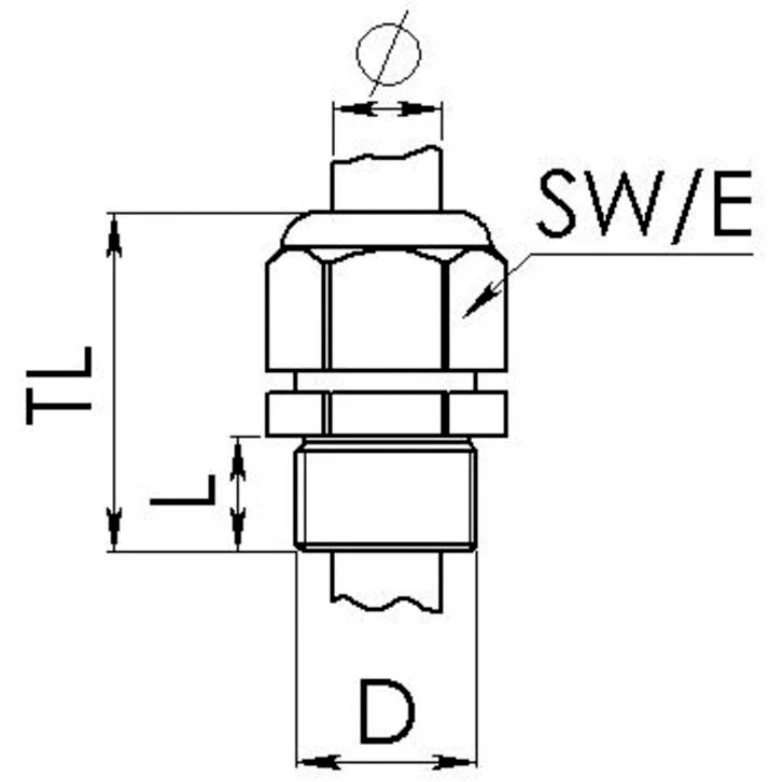

Technical Specifications  Technical Specifications Cable gland Nominal thread size metric/PG 32 Hexagon angular dimension 40 mm Pitch thread 1.5 mm Spanner width 36 mm Thread length 12 mm RAL number 9005 Working temperature -40 – 100 °C Suitable for cable outer diameter 13 – 21 mm Shock resistant Yes With strain relief Yes Halogen free Yes Screened No Explosion-tested version No EMC-version No Bend radius protection/trumpet flare No Glass fibre reinforced No Flat cable sealing No Multi cable sealing No Locknut included No Separable (split) screw gland No Snapping in opening No For armoured cable No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
