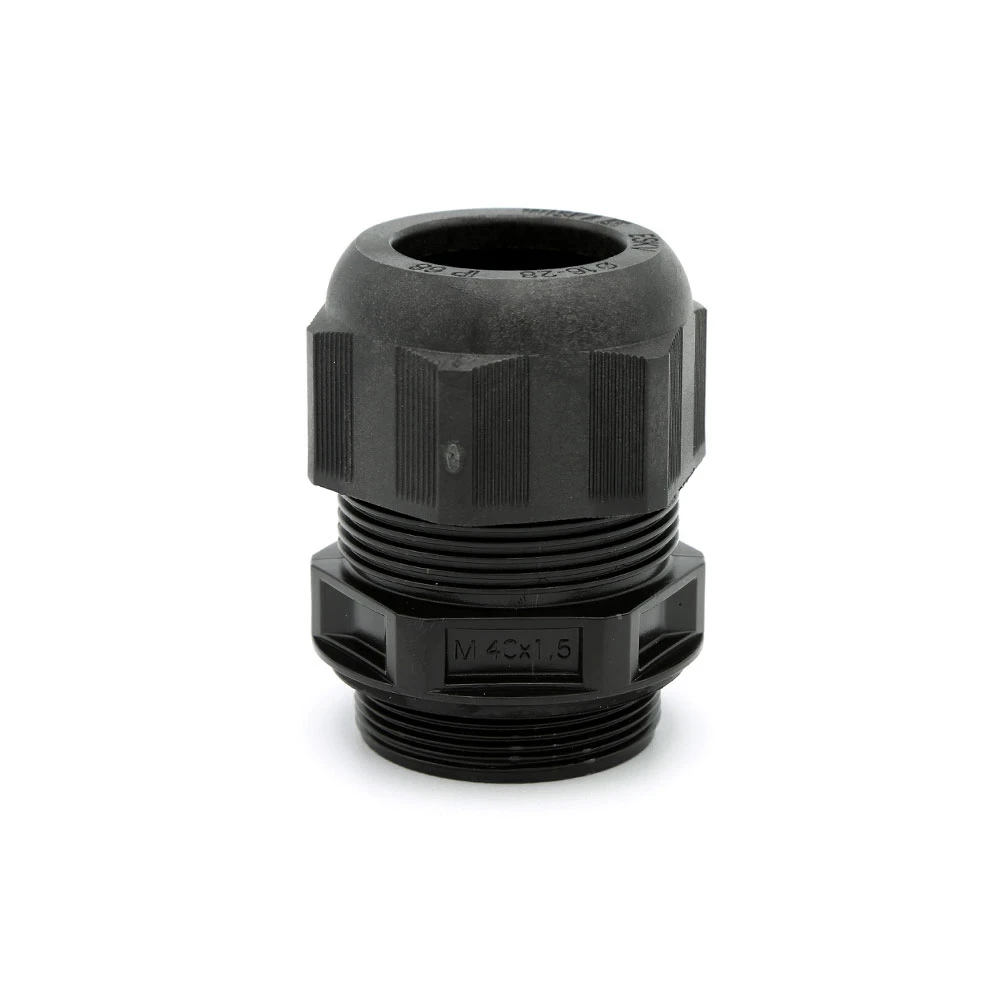

Wiska Cable Gland ESKV40 IP69 IP68 (5 bar 30 min) M40 Black Polyamide
£6.06 Incl. VAT
SPRINT® cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.nThe SPRINT® system offers a comprehensive selection of accessories for special applications. · · · Protection Rating – IP68 (5 bar 30 mins) / IP69 · · M40 · · Material – 100% polyamide · · Halogen Free / UV Resistant · · Clamping range: 16 – 28mm · · Vibration Proof · · Gasket EPDM · · Colour: Black
16 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Cable gland Wrench width 46 mm Nominal thread size metric/PG 40 Thread length 12 mm RAL number 9005 Explosion-tested version No Bend radius protection/trumpet flare No Shock resistant Yes Halogen free Yes Suitable for cable outer diameter 16 – 28 mm Working temperature -40 – 100 °C Pitch thread 1.5 mm Hexagon angular dimension 51 mm Glass fibre reinforced No EMC-version No Flat cable sealing No Multi cable sealing No Locknut included No Separable (split) screw gland No Snapping in opening No For armoured cable No With strain relief Yes Screened No · Technical Data Sheet – Click to Download
