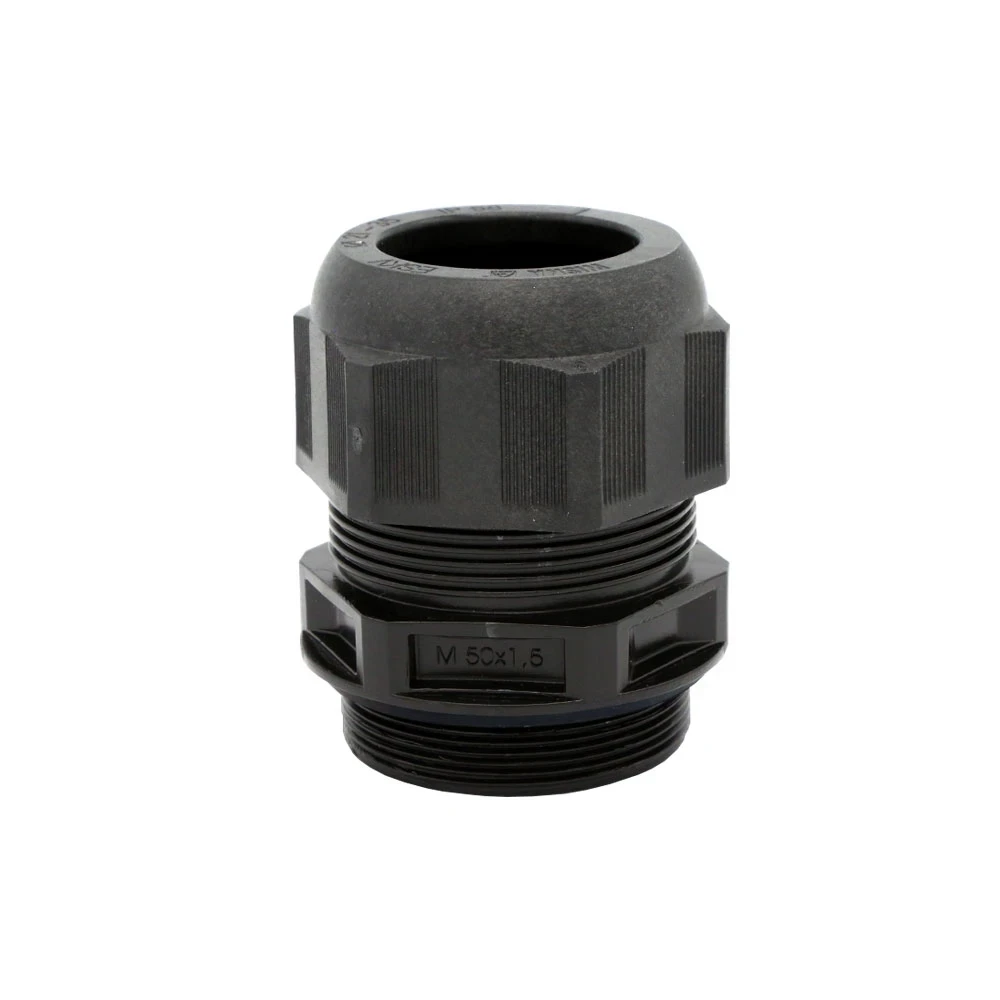

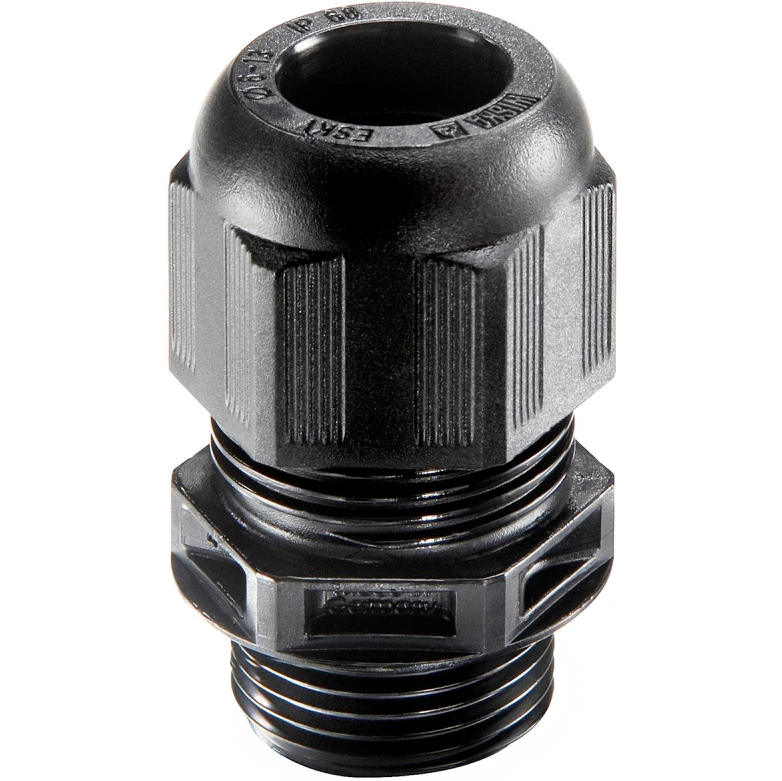

Wiska Cable Gland ESKV50 IP69 IP68 (5 bar 30 min) M50 Black Polyamide
£9.30 Incl. VAT
SPRINT® cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut.nThe SPRINT® system offers a comprehensive selection of accessories for special applications. · · · Protection Rating – IP68 (5 bar 30 mins) / IP69 · · M50 · · Material – 100% polyamide · · Halogen Free / UV Resistant · · Clamping range: 21 – 35mm · · Vibration Proof · · Gasket EPDM · · Colour: Black
17 available – delivery in 1–2 days
Description

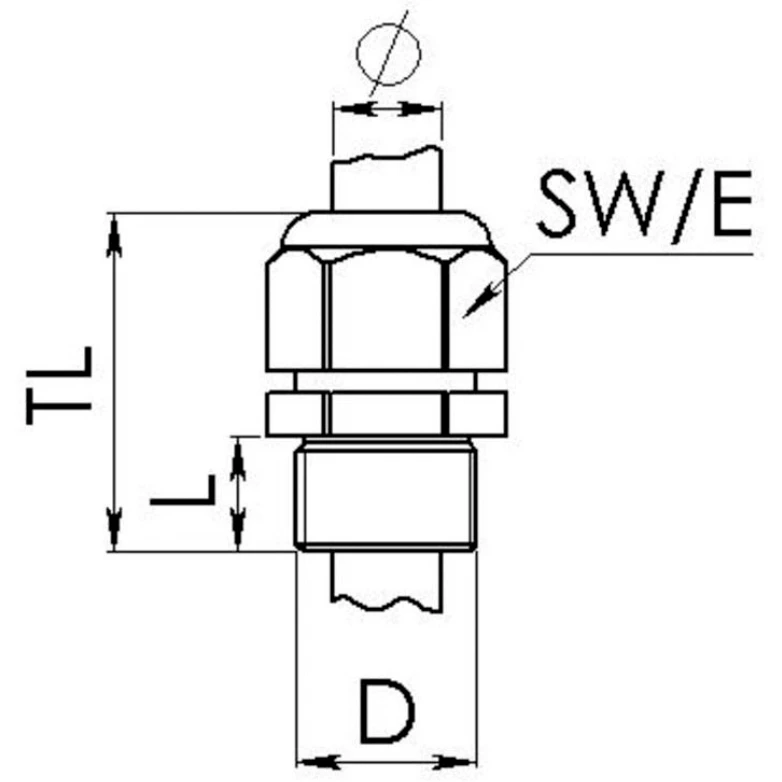

Technical Specifications Technical Specifications Cable gland Wrench width 55 mm Hexagon angular dimension 61 mm RAL number 9005 Nominal thread size metric/PG 50 Pitch thread 1.5 mm Thread length 14 mm Working temperature -40 – 100 °C Suitable for cable outer diameter 21 – 35 mm For armoured cable No Explosion-tested version No Locknut included No Multi cable sealing No Flat cable sealing No Snapping in opening No Separable (split) screw gland No Halogen free No Screened No EMC-version No Glass fibre reinforced No Bend radius protection/trumpet flare No Shock resistant Yes With strain relief Yes · Technical Data Sheet – Click to Download
