Wiska Cable Gland Esskv 20 1.4305 M20 Stainless Steel IP69 IP68 (5 Bar 3
Wiska Cable Gland Esskv 20 1.4305 M20 Stainless Steel IP69 IP68 (5 Bar 3
Wiska Cable Gland Esskv 20 1.4305 M20 Stainless Steel IP69 IP68 (5 Bar 3 - Image 2
Wiska Cable Gland Esskv 20 1.4305 M20 Stainless Steel IP69 IP68 (5 Bar 3 - Image 3

Wiska Cable Gland Esskv 20 1.4305 M20 Stainless Steel IP69 IP68 (5 Bar 3

£27.67 Incl. VAT

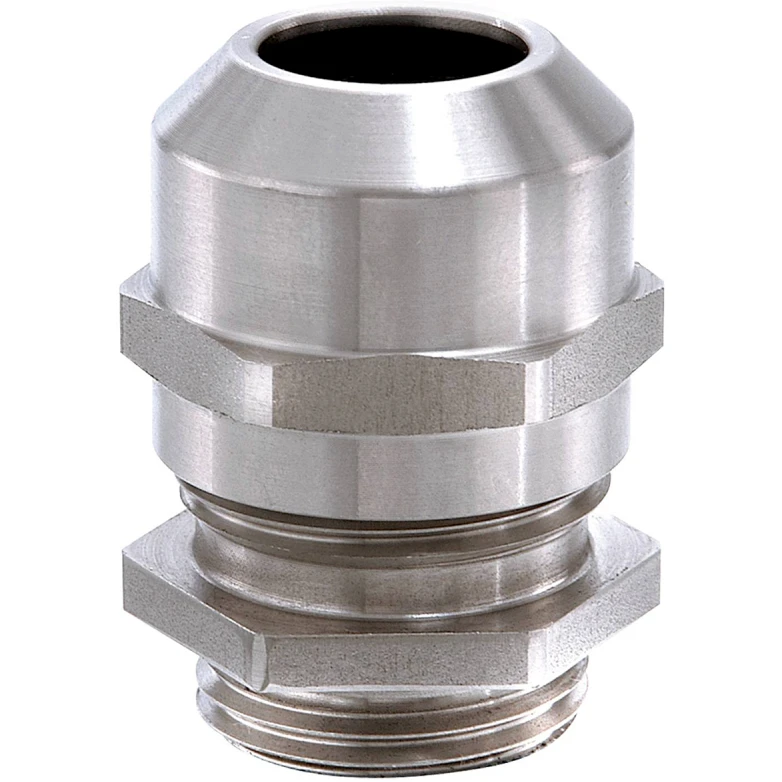

SPRINT® cable gland made of stainless steel for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing by mounted O-ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. nThe SPRINT® system offers an extensive selection of accessories for special applications. · · · Gland Stainless steel A2 (1.4305), Gasket EPDM, Clamping cage Polyamide · · Cable screw gland · · strain relief · · Cable entry · · Indoor and outdoor use · · IP69 / IP68 (5 bar 30 min) · · Easy install · · Stainless steel Grade 1.4305 · · RoHS compliant · · cable gland accessories

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10069002 Categories: , Brand: Product Code: 2500413958

Description

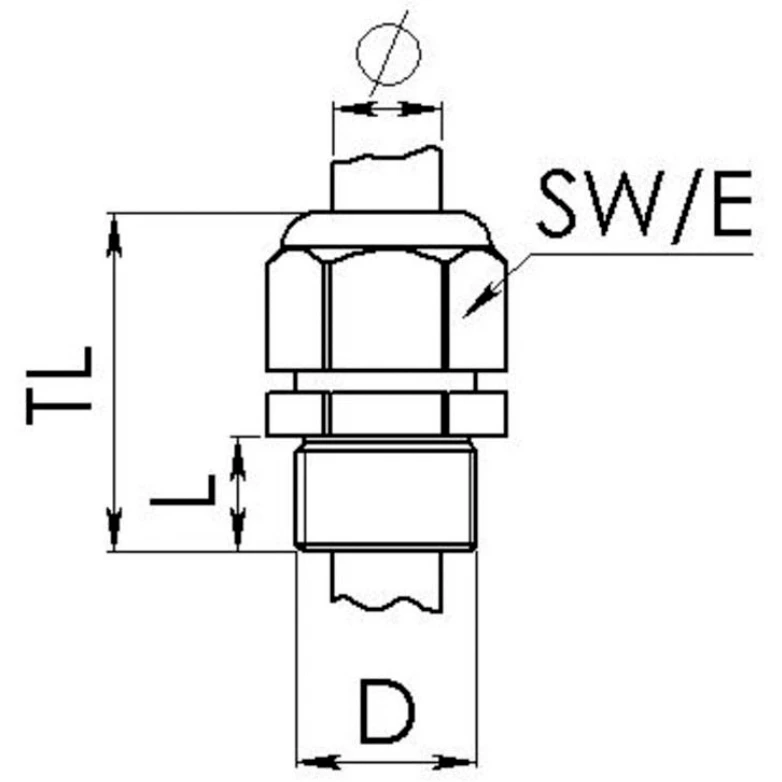

Technical Specifications  Technical Specifications Cable gland Pitch thread 1.5 mm RAL number 0 Thread length 6 mm Spanner width 24 mm Hexagon angular dimension 27 mm Working temperature -40 – 100 °C Nominal thread size metric/PG 20 Suitable for cable outer diameter 6 – 13 mm Shock resistant Yes Halogen free Yes With strain relief Yes Bend radius protection/trumpet flare No Glass fibre reinforced No Screened No Separable (split) screw gland No Snapping in opening No For armoured cable No Explosion-tested version No EMC-version No Flat cable sealing No Multi cable sealing No Locknut included No
