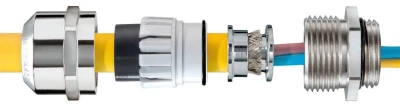

Wiska Cable Gland Esskv 20 Emv-Z EMC 1.4305 M20 Stainless Steel IP69 IP6

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Thread type Metric Degree of protection (IP rating) IP68 Type of sealing Sealing ring Model Straight Surface protection Untreated Material Metal Hexagon angular dimension 27 mm Material qualifier Stainless steel 304 Nominal thread size metric/PG 20 Spanner width 24 mm Pitch thread 1.5 mm Thread length 6 mm Suitable for cable outer diameter 6 mm Working temperature -40 °C Halogen free Yes Shock resistant Yes Glass fibre reinforced No Multi cable sealing No EMC-version Yes Flat cable sealing No Separable (split) screw gland No Locknut included No Explosion-tested version No Bend radius protection/trumpet flare No With strain relief Yes Screened Yes
