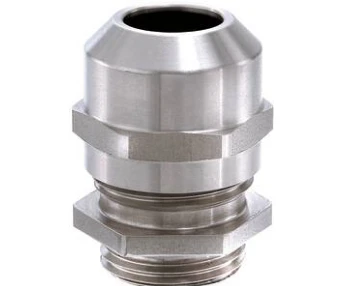

Wiska Cable Gland Esskv 32 1.4305 M32 Stainless Steel IP69 IP68 (5 Bar 3
£65.39 Incl. VAT
SPRINT® cable gland made of stainless steel for indoor and outdoor use.nOptimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing by mounted O-ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. nThe SPRINT® system offers an extensive selection of accessories for special applications. · · · Gland Stainless steel A2 (1.4305), Gasket EPDM, Clamping cage Polyamide · · Cable screw gland · · strain relief · · Cable entry · · Indoor and outdoor use · · IP69 / IP68 (5 bar 30 min) · · Easy install · · Stainless steel Grade 1.4305 · · RoHS compliant · · cable gland accessories
Out of Stock
Description
Technical Specifications Technical Specifications Cable gland Nominal thread size metric/PG 32 Hexagon angular dimension 40 mm Pitch thread 1.5 mm Thread length 8 mm Spanner width 36 mm RAL number 0 Working temperature -40 – 100 °C Suitable for cable outer diameter 13 – 21 mm With strain relief Yes Shock resistant Yes Halogen free Yes Explosion-tested version No Bend radius protection/trumpet flare No Glass fibre reinforced No EMC-version No Screened No Flat cable sealing No Multi cable sealing No Locknut included No Separable (split) screw gland No Snapping in opening No For armoured cable No
