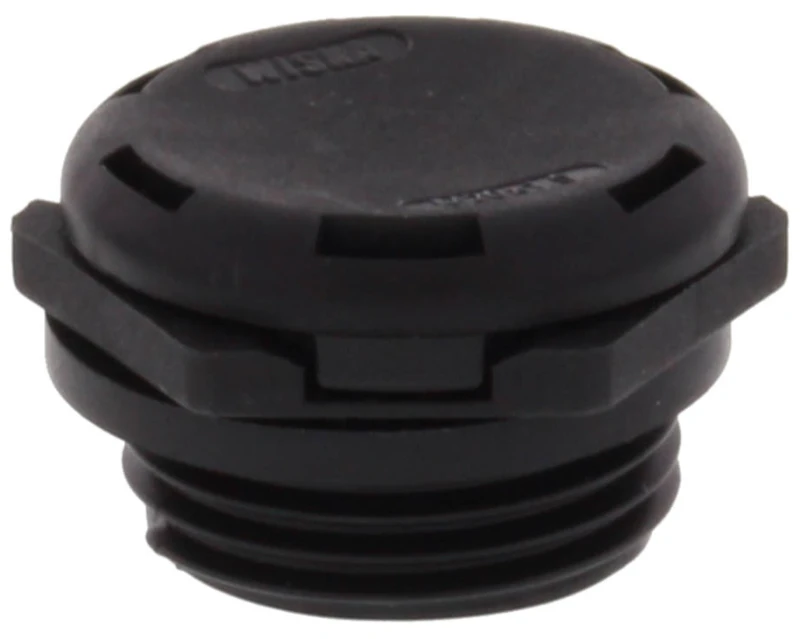

Wiska Vent Plug Evps 20 M20 Ral 9005 Polyamide Pressure Compensation
Wiska Vent Plug Evps 20 M20 Ral 9005 Polyamide Pressure Compensation
Wiska Vent Plug Evps 20 M20 Ral 9005 Polyamide Pressure Compensation - Image 2
Wiska Vent Plug Evps 20 M20 Ral 9005 Polyamide Pressure Compensation - Image 3

Wiska Vent Plug Evps 20 M20 Ral 9005 Polyamide Pressure Compensation

£7.20 Incl. VAT

Our IP68/IP69 VentGLAND and VentPLUG eliminates the build-up of condensation in your enclosure or installation. nAir can flow freely through a high performance ePTFE membrane. The same membrane prevents moisture, dirt and other contaminants passing through preventing the build of condensation.nAvailable in M16, M20, M25, M32, M50 and M63 sizes in either polyamide, brass nickel-plated or stainless-steel. · · · Ventilation connection · · Breathing plug · · Ventilation · · Pressure compensation gland · · Protect against condensation · · Ventplug · · Venting solution · · Temp Range -40 °C – 100 °C · · IP68 / IP69 · · Equalisation Unit

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10106595 Category: Brand: Product Code: 2500942029

Description

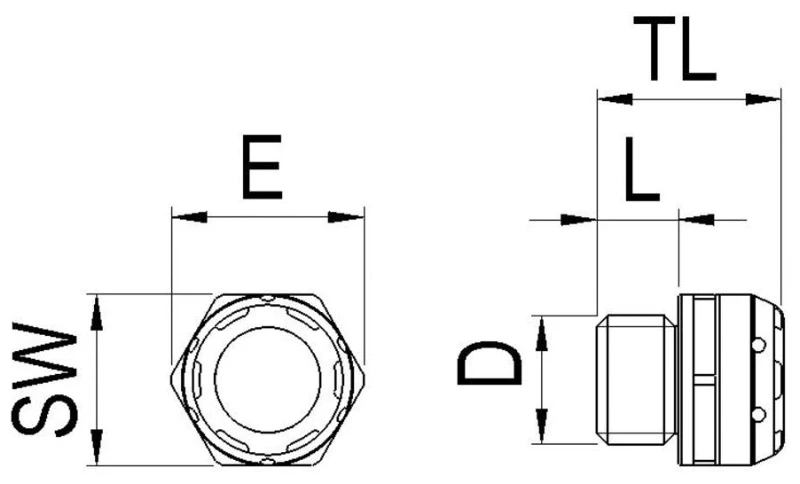

Technical Specifications  Technical Specifications Cable gland Spanner width 24 mm Nominal thread size metric/PG 20 Pitch thread 1.5 mm Hexagon angular dimension 27 mm Thread length 9 mm RAL number 9005 Suitable for cable outer diameter 0 – 0 mm Working temperature -40 – 100 °C Halogen free Yes Shock resistant Yes With strain relief No Glass fibre reinforced No EMC-version No Locknut included No Flat cable sealing No Separable (split) screw gland No For armoured cable No Snapping in opening No Explosion-tested version No Screened No Bend radius protection/trumpet flare No Multi cable sealing No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
