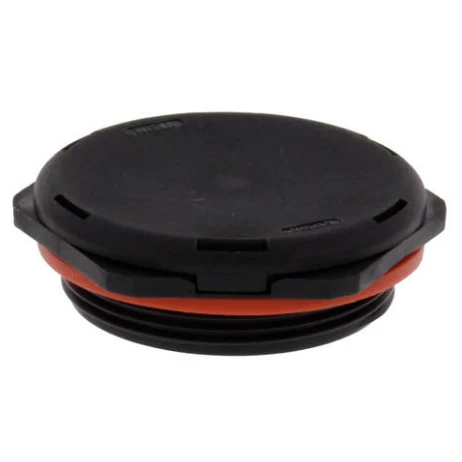

Wiska Vent Plug Evps 40 HF High Airflow M40 Ral 9005 Polyamide Pre
Wiska Vent Plug Evps 40 HF High Airflow M40 Ral 9005 Polyamide Pre
Wiska Vent Plug Evps 40 HF High Airflow M40 Ral 9005 Polyamide Pre - Image 2

Wiska Vent Plug Evps 40 HF High Airflow M40 Ral 9005 Polyamide Pre

£17.65 Incl. VAT

The VentPLUG is used when a cable gland with an additional pressure equalisation unit is required to vent the enclosure.nAirflow rate for these article at 70mbar: 1650l/h · · · Ventilation connection · · Breathing plug · · Ventilation · · Pressure compensation gland · · Protect against condensation · · Ventplug · · Venting solution · · Temp Range -40 °C – 100 °C · · IP68 / IP69 · · Equalisation Unit, High air flow

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 10106621 Category: Brand: Product Code: 2500942036

Description

Technical Specifications  Technical Specifications Cable gland Spanner width 46 mm RAL number 9005 Nominal thread size metric/PG 40 Hexagon angular dimension 51 mm Pitch thread 1.5 mm Thread length 9 mm Working temperature -40 – 100 °C Suitable for cable outer diameter 0 – 0 mm Halogen free Yes Bend radius protection/trumpet flare No EMC-version No Multi cable sealing No Glass fibre reinforced No Flat cable sealing No Locknut included No Explosion-tested version No Separable (split) screw gland No For armoured cable No Snapping in opening No Shock resistant Yes With strain relief No Screened No
