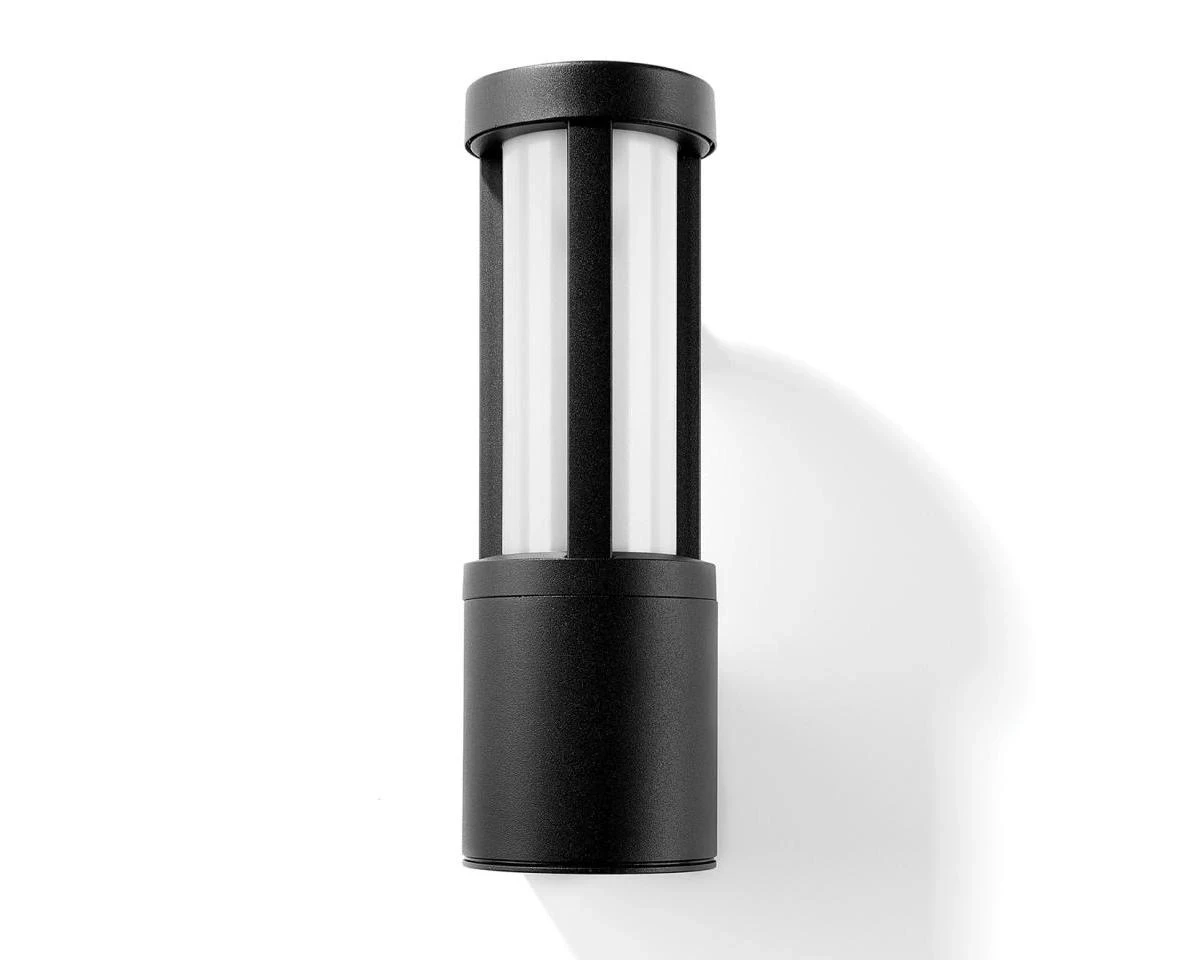

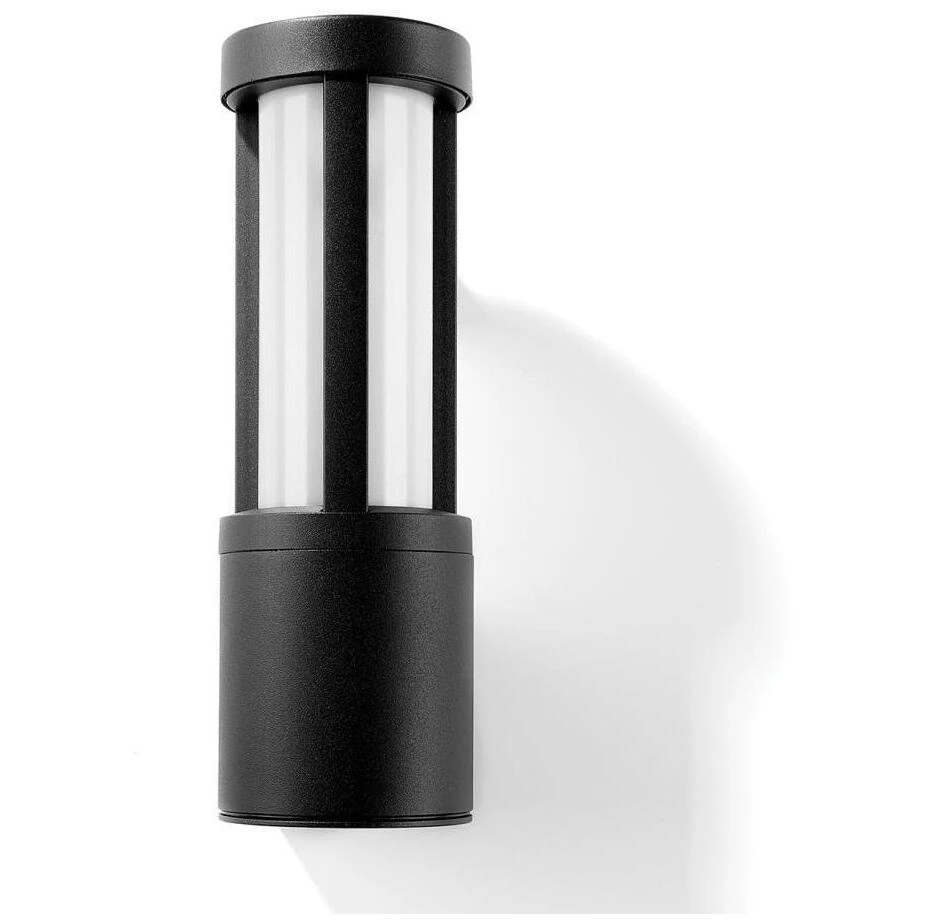

WL012 IP54 610lm Black Outdoor Wall Light

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Conductor cross section – mm² Outer diameter – mm Recess diameter – mm Recess width – mm Number of poles – Width 80 mm Number of lamps 1 Unified Glare Rating (UGR) 0 Rated life time L70/B50 at 25 °C 30000 h Luminaire efficacy 55 lm/W Power factor – Height/depth 245 mm Rated life time L80/B50 at 25 °C – h Length 131 mm Recess height/depth – mm Rated ambient temperature acc. IEC62722-2-1 – – 20 °C Colour temperature 3000 – 3000 K Nominal voltage 220 – 240 V Lamp power – W Rated luminous flux acc. IEC 62722-2-1 610 lm Maximum system power 11 W Recess length – mm Suitable for suspended mounting No With light sensor No Suitable for emergency lighting No With movement sensor No Light source included Yes Suitable for wall mounting Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for light line configuration No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 No Suitable for ceiling mounting No Suitable for surface mounting No Suitable for recessed mounting No IFTTT support available No Control gear included No Dimming DALI No Dimming programmable No Dimming with push-button No Dimming sine wave reduction No Bluetooth operated No Dimming DSI No Dimming mains voltage modulation No Dimming DMX No Dimming touch and dim No Dimming LineSwitch No Dimming manufacturer’s proprietary system No Dimming trailing edge No Dimming leading edge No With air slots No Emergency power supply integrated No Dimming RF No Dimming Zigbee No Dimming depending on control gear No Dimming DALI-2 No Compatible with Google Assistant No Compatible with Amazon Alexa No Compatible with Apple HomeKit No Dimming 1-10 V No Dimming 0-10 V No No dimming function Yes Dimming potentiometer (integrated) No · Technical Data Sheet – Click to Download
