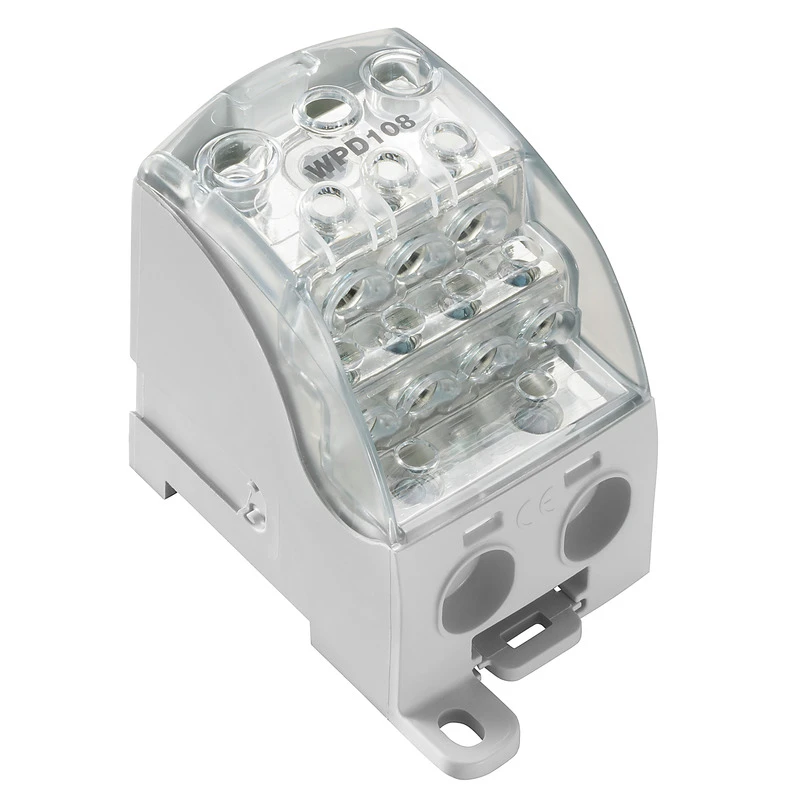

WPD 120mm² Phase Distributor Block Light Grey

WPD 120mm² Phase Distributor Block Light Grey

£65.36 Incl. VAT

With this distributor block you are able to efficiently and safely distribute electricity to the power consumer. · · · Tightening torque for aluminium conductors: 22.6-120Nm (120mm²)/11.3-35Nm (35mm²)/5.1-25Nm (25mm²) · · Tightening torque for copper conductors: 19-120Nm (120mm²)/2-25Nm (25mm²)/2-35Nm (35mm²) · · Housed with Wemid for increased safety and performance · · It is powered by the control unit. · · To be inserted in the cavity of a power base provided for the auxiliary modules.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1562100000 Categories: , , Brand: Part Number: 2501001823

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Grey Mounting method DIN rail (top hat rail) 35 mm Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Connection position Above Width/grid dimension 52.5 mm Rated voltage 1000 V Rated current In 250 A Number of levels 1 Length 77 mm Connectable conductor cross section solid-core 120 – 120 mm² · Technical Data Sheet – Click to Download
