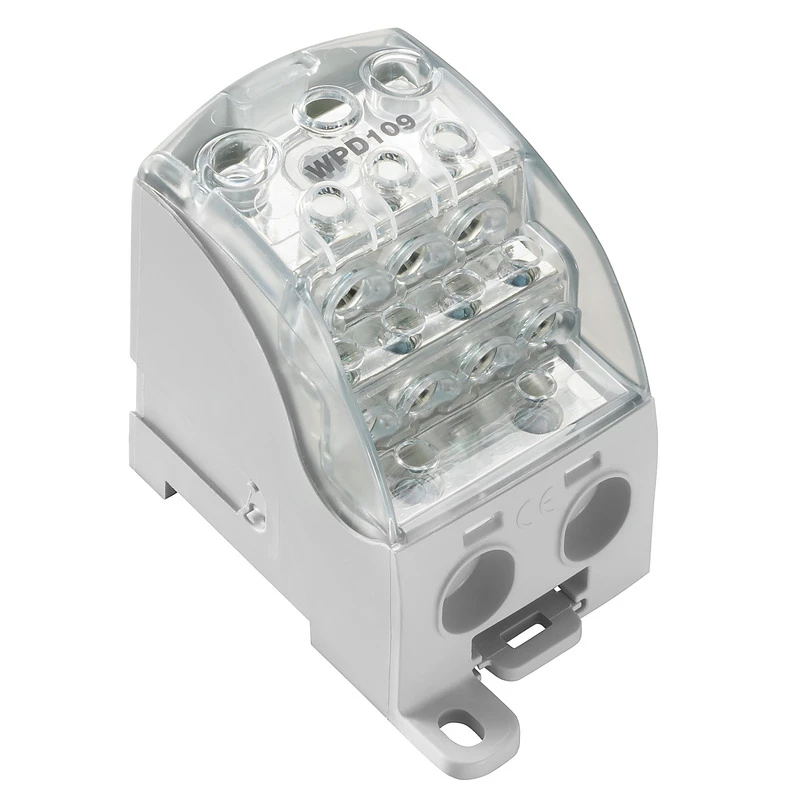

WPD 185mm² Phase Distributor Block Light Grey
WPD 185mm² Phase Distributor Block Light Grey
WPD 185mm² Phase Distributor Block Light Grey - Image 2
WPD 185mm² Phase Distributor Block Light Grey - Image 3

WPD 185mm² Phase Distributor Block Light Grey

£62.56 Incl. VAT

With this distributor block you are able to efficiently and safely distribute electricity to the power consumer. · · · Tightening torque for aluminium conductors: 22.59Nm (25mm²)/5-11.29Nm (16mm²) · · Tightening torque for copper conductors: 19Nm (185mm²)/2Nm (25mm²)/2.5Nm (35mm²) · · Housed with Wemid for increased safety and performance · · It is powered by the control unit. · · To be inserted in the cavity of a power base provided for the auxiliary modules.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1562090000 Categories: , , Brand: Part Number: 2501001834

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Grey Mounting method DIN rail (top hat rail) 35 mm Type of electrical connection 1 Screw connection Connection position Above Type of electrical connection 2 Screw connection Rated current In 353 A Rated voltage 1100 V Width/grid dimension 52.5 mm Length 77 mm Number of levels 1 Connectable conductor cross section solid-core 185 – 185 mm² · Technical Data Sheet – Click to Download
