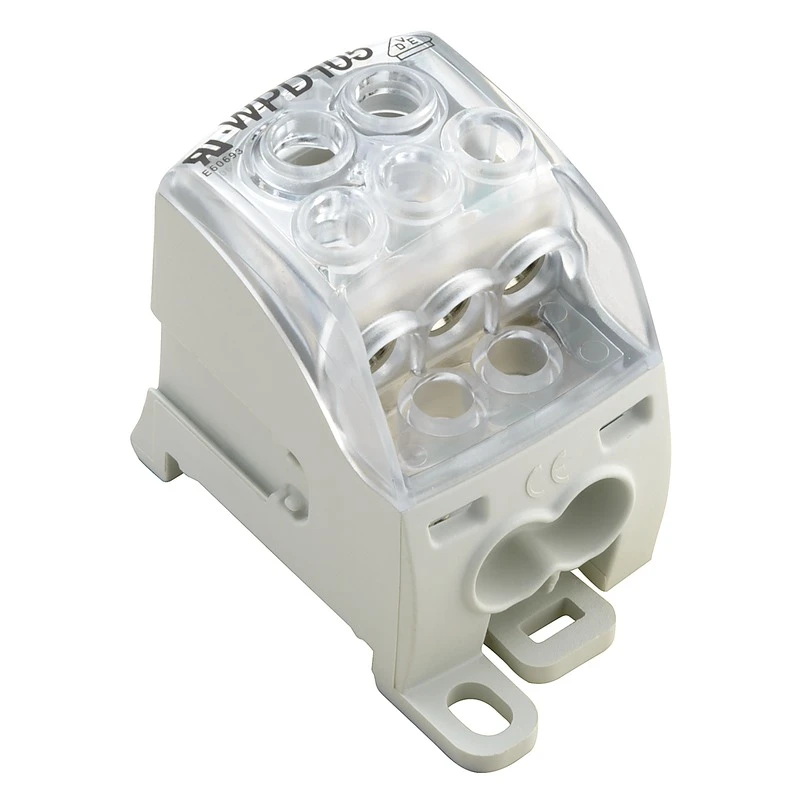

WPD 35mm² Phase Distributor Block Light Grey

WPD 35mm² Phase Distributor Block Light Grey

£32.53 Incl. VAT

With this distributor block you are able to efficiently and safely distribute electricity to the power consumer. · · · Tightening torque for aluminium conductors: 11.3-35Nm (35mm²)/5.1-16Nm (16mm²) · · Tightening torque for copper conductors: 3.5Nm (35mm²)/2.5Nm (16mm²) · · Housed with Wemid for increased safety and performance · · For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (120mm width), mounting on 2 DIN-rails or screw fixing. · · Mechanical durability: 8 Mcycles · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.2Nm · · Ambient operating temperature: -5°C to 60°C · · IP20 Degree of protection (front face)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1562170000 Categories: , , Brand: Part Number: 2501001801

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Grey Mounting method DIN rail (top hat rail) 35 mm Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Connection position Above Rated voltage 1000 V Rated current In 125 A Width/grid dimension 37.1 mm Number of levels 1 Length 53.7 mm Connectable conductor cross section solid-core 35 – 35 mm² · Technical Data Sheet – Click to Download
