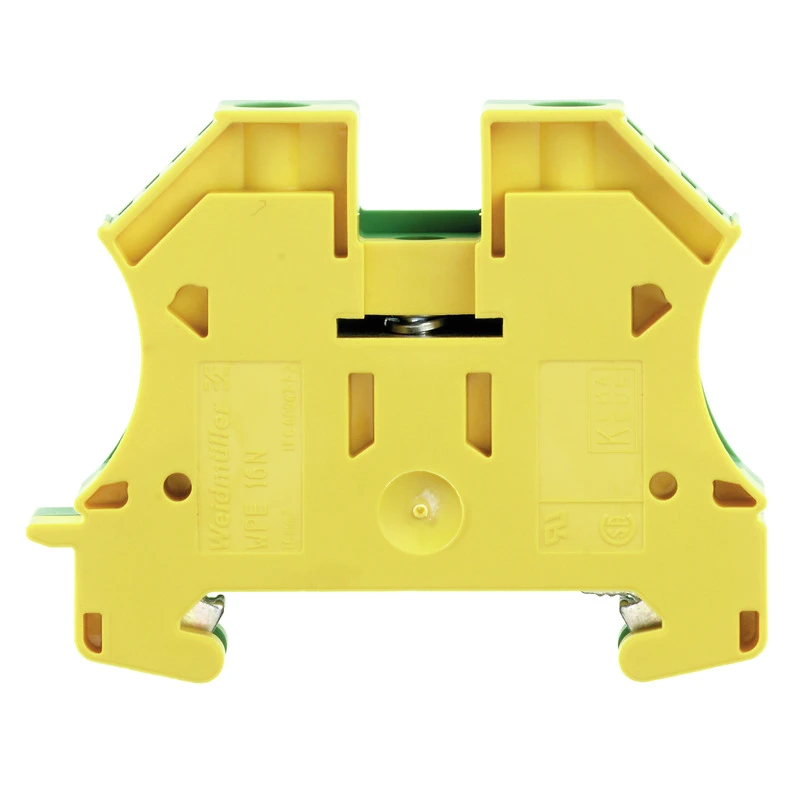

WPE 16mm² Wemid PE Terminal Block 56 x 12 x 46.5mm Green/Yellow

Description

Technical Specifications  Technical Specifications Earth terminal block Mounting method DIN rail (top hat rail) 35 mm Connection position Sideways Inflammability class of insulation material acc. with UL94 V0 Type of electrical connection 1 Screw connection Material insulation body Thermoplastic Height at lowest possible mounting height 56 mm Connectable conductor cross section fine-strand without cable end sleeve 1.5 – 16 mm² Operating temperature -50 – 120 °C Length 46.5 mm Width/grid dimension 12 mm Number of clamp positions per level 2 Number of levels 1 Type of electrical connection 2 Screw connection Connectable conductor cross section fine-strand with cable end sleeve 1.5 – 16 mm² Connectable conductor cross section solid-core 1.5 – 16 mm² Connectable conductor cross section multi-wired 1.5 – 25 mm² PEN function possible No Closing plate required No · Technical Data Sheet – Click to Download
