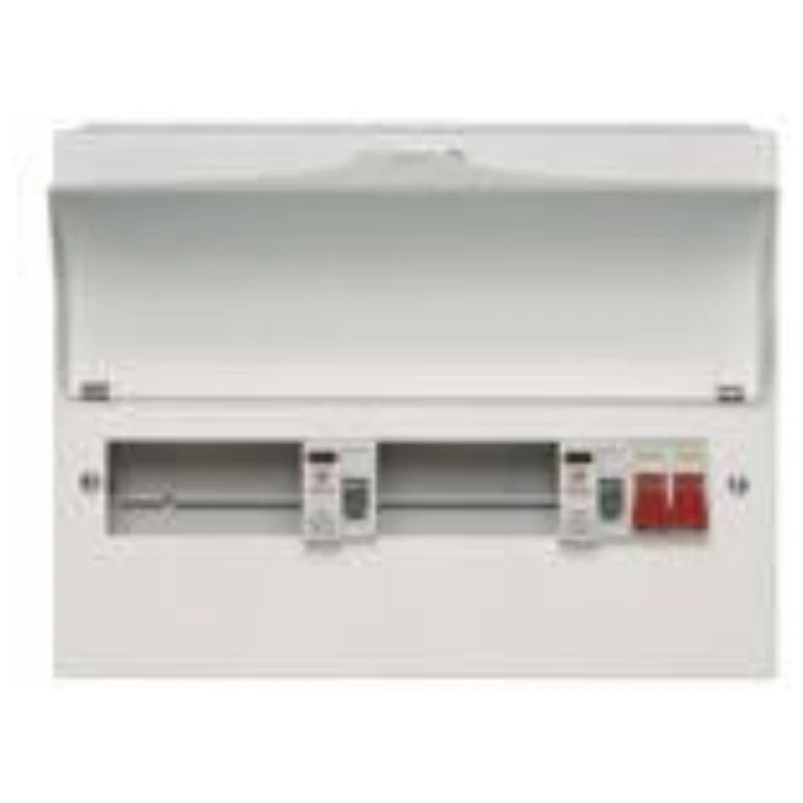

Wylex 10 Way Dual RCD Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration
Wylex 10 Way Dual RCD Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration
Wylex 10 Way Dual RCD Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration - Image 2

Wylex 10 Way Dual RCD Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration

£188.35 Incl. VAT

The Wylex NMISS10SLMA is a 10 Way Flexible Dual Type A 80A RCD Metal Clad Consumer Unit. Cable entry knockouts on 5 sides, top, bottom, left, right and rear. · · · Full metal enclosure · · Flexible busbar assembly · · 10W Dual RCD · · 2x 80A 30mA type A RCCBs · · Rcd Type A · · Tripping Sensitivity 30mA · · Mounting type Surface · · Voltage Rating 230V

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NMISS10SLMA Categories: , Brand: Product Code: 2501165372

Description

Technical Specifications  Technical Specifications Small distribution board equipped Width 343 mm Depth 121 mm Height 261 mm Width in number of modular spacings 16 Total number of groups 2 Number of poles main switch 2 Number of phases 1 Main switch rated current 100 A Extension possible No Lockable Yes Over voltage-/surge protection No With transparent cover No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
