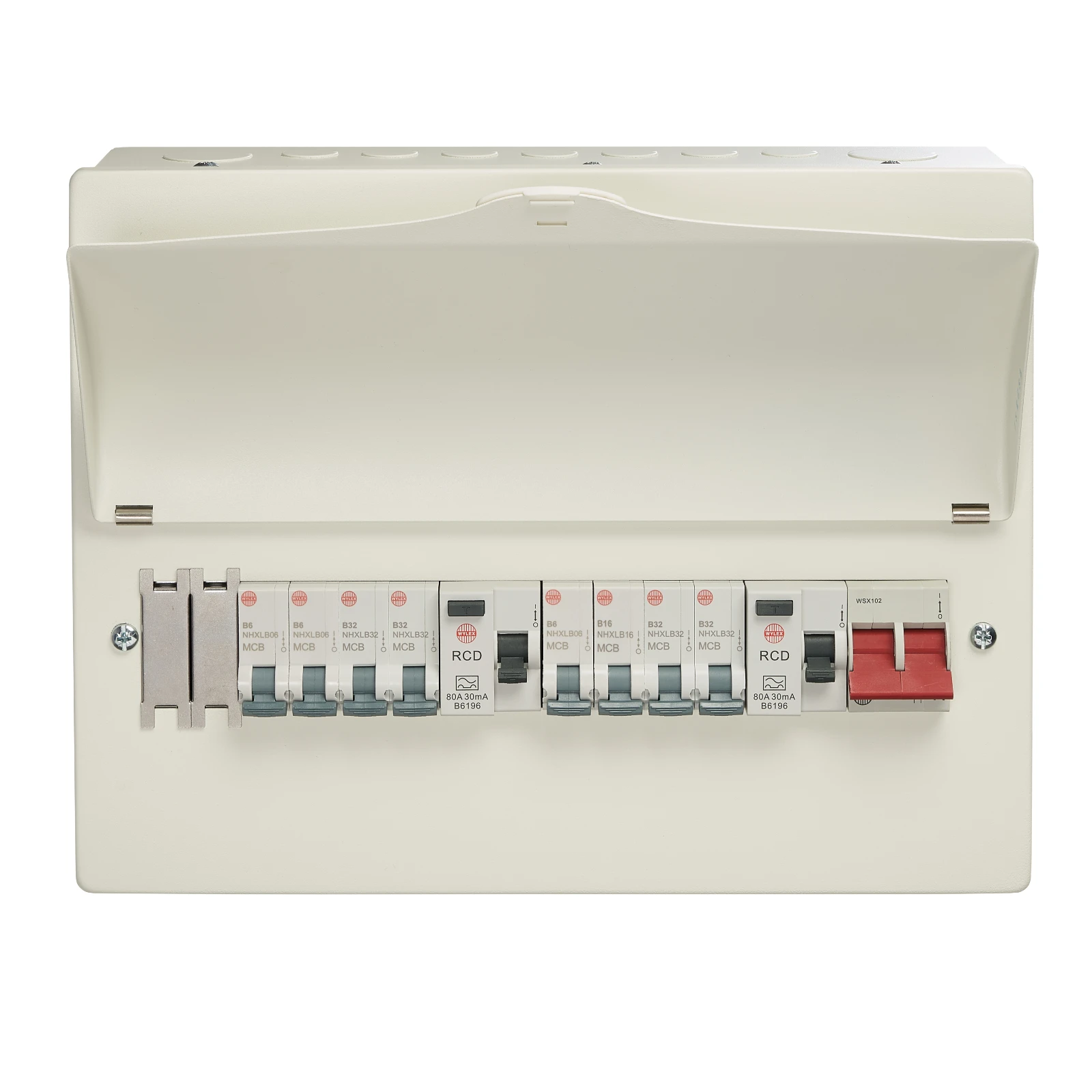

Wylex 10 Way High Integrity Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration with 8 MCBs
Wylex 10 Way High Integrity Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration with 8 MCBs
Wylex 10 Way High Integrity Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration with 8 MCBs - Image 2
Wylex 10 Way High Integrity Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration with 8 MCBs - Image 3

Wylex 10 Way High Integrity Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration with 8 MCBs

£131.16 Incl. VAT

Supplied with 2 x 80A 30mA Type A RCDs, 1 x 100A DP isolator and full complement of earth and neutral terminals along with marking labels, busbar and instructions. · · · 10 Way Flexible configuration as Dual RCD or High Integrity, space for RCBOs. NM Range. · · 100A Twin terminal Main Isolator · · 80A 30mA Type A RCDs · · Curved Visor with temporary locking facility · · Populated with 8 Type B Miniature Circuit Breakers (3x6A, 1x16A, 4x32A) and 2 blanks · · Lockable visor · · Fully compliant with BS EN 60439-3

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: WNM1769 Category: Brand: Product Code: 2501285087

Description

Technical Specifications  Technical Specifications Small distribution board equipped Height 261 mm Width 343 mm Depth 121 mm Width in number of modular spacings 16 Number of poles main switch 2 Total number of groups 3 Number of phases 1 Main switch rated current 100 A Lockable Yes Extension possible No Over voltage-/surge protection No With transparent cover No · Technical Data Sheet – Click to Download
