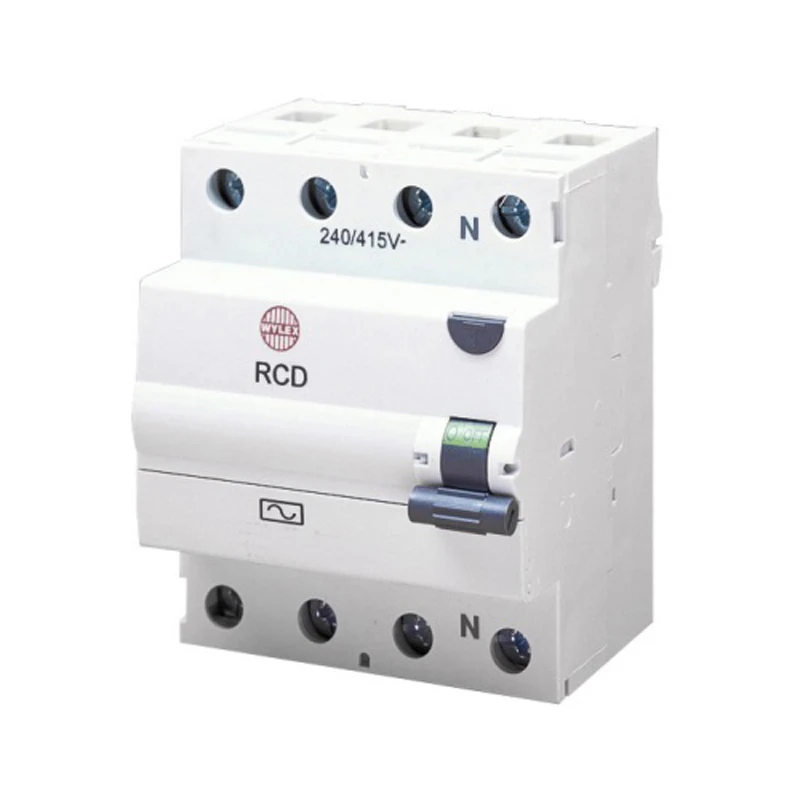

Wylex 100A 100mA TYPE A 4P TIME DELAYED RCD
Wylex 100A 100mA TYPE A 4P TIME DELAYED RCD
Wylex 100A 100mA TYPE A 4P TIME DELAYED RCD - Image 2

Wylex 100A 100mA TYPE A 4P TIME DELAYED RCD

£110.74 Incl. VAT

Wylex Lifeline Time Delay RCD is a circuit protection system suitable for domestic household premises. It is a critical device that help installers meet the requirements of the BS 7671 IET Wiring Regulations, BS 7671 prescribes the circumstances under which additional protection is necessary. It is ideal for installations where additional circuits need to meet current regulations. · · · Four Pole RCCB · · 100A 100mA · · Type A · · For use with Wylex NH distribution boards · · For incoming options, can be used with NH4PINKIT connection kit

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: WRMT100/4 Category: Brand: Product Code: 2500075885

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Number of poles 4 Rated current 100 A Rated impulse-withstand voltage (Uimp) 4 kV Rated fault current 0.1 A Rated insulation voltage Ui 400 V Rated voltage 415 V Width in number of modular spacings 4 Selective protection No With interlocking device No Additional equipment possible No · Technical Data Sheet – Click to Download
