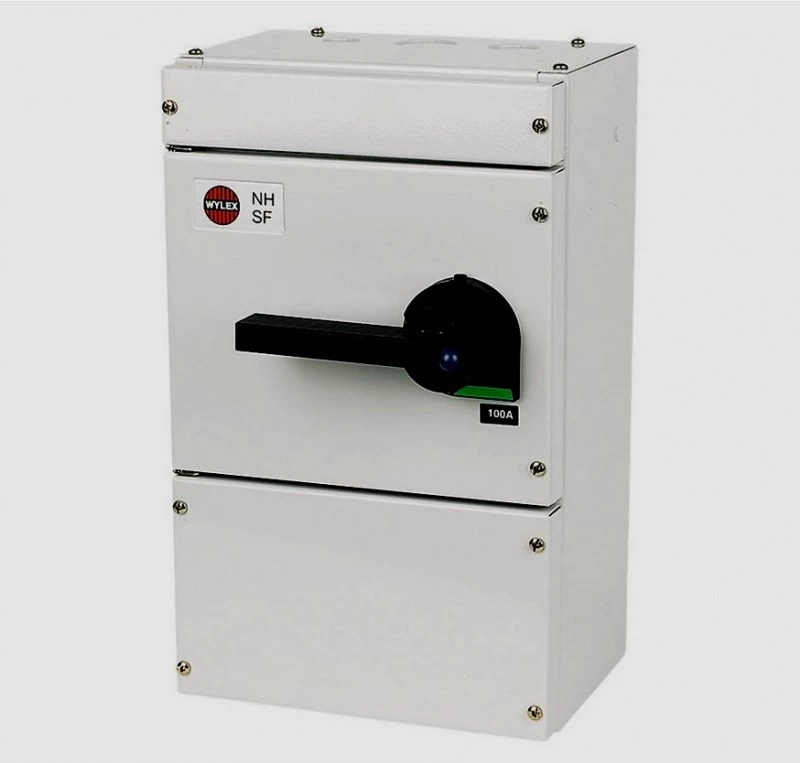

Wylex 100A 1P+N Fuse Combination Unit c/w Fuses
Wylex 100A 1P+N Fuse Combination Unit c/w Fuses
Wylex 100A 1P+N Fuse Combination Unit c/w Fuses - Image 2

Wylex 100A 1P+N Fuse Combination Unit c/w Fuses

£362.96 Incl. VAT

· · Supplied with 100A fuses. · · Painted RAL 7035 steel enclosure 425mmH x 263mmW x 188mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 70mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB2) is required.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHSPSF100 Categories: , Brand: Product Code: 2500116463

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Rated permanent current Iu 100 A Number of poles 1 Max. rated operation voltage Ue AC 230 V Conditioned rated short-circuit current Iq 20 kA Rated short-time withstand current lcw 1.5 kA Rated operation power at AC-23, 400 V 37 kW With error protection No Motor drive optional No Equipped with connectors Yes Suitable for busbar mounting No Version as safety switch No Version as main switch Yes Motor drive integrated No Version as emergency stop installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
