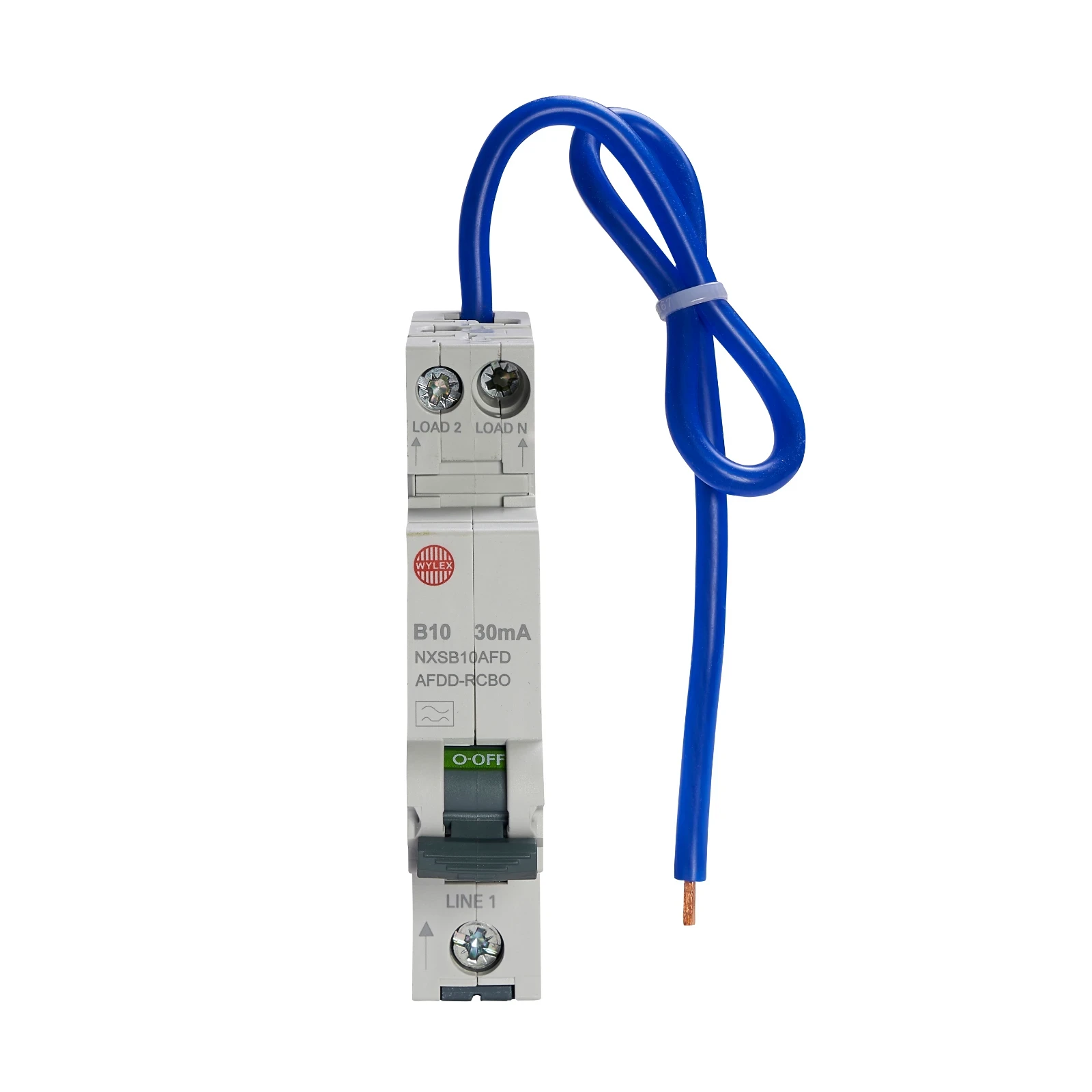

Wylex 10A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO
Wylex 10A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO
Wylex 10A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO - Image 2
Wylex 10A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO - Image 3

Wylex 10A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO

£130.33 Incl. VAT

Combined AFD/RCBO – with switched neutral 6kA. AFDD technology automatically disconnects dangerous electrical arcs that can cause fires. MCB technology prevents overload currents and overheating. · · · Single module, Miniature AFDD/RCBO combined · · 10A B curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · No miss busbar connection · · Fits NM & NMX consumer units and NH L range Distribution Boards · · No. of poles 1P+N · · Modules 1 · · Voltage 230V · · Mounting type Din rail · · IP20

12 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NXSB10AFD Categories: , , Brand: Part Number: 2501243203

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Over voltage category 3 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Tripping characteristic (type/curve) B Rated voltage 230 V Rated insulation voltage Ui 400 V Rated current 10 A Width in number of modular spacings 1 Rated fault current 0.03 A Current limiting class 3 Number of protected poles 1 Number of poles (total) 2 Recess depth 73 mm Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Anti-nuisance tripping version No Concurrently switching N-neutral Yes Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
