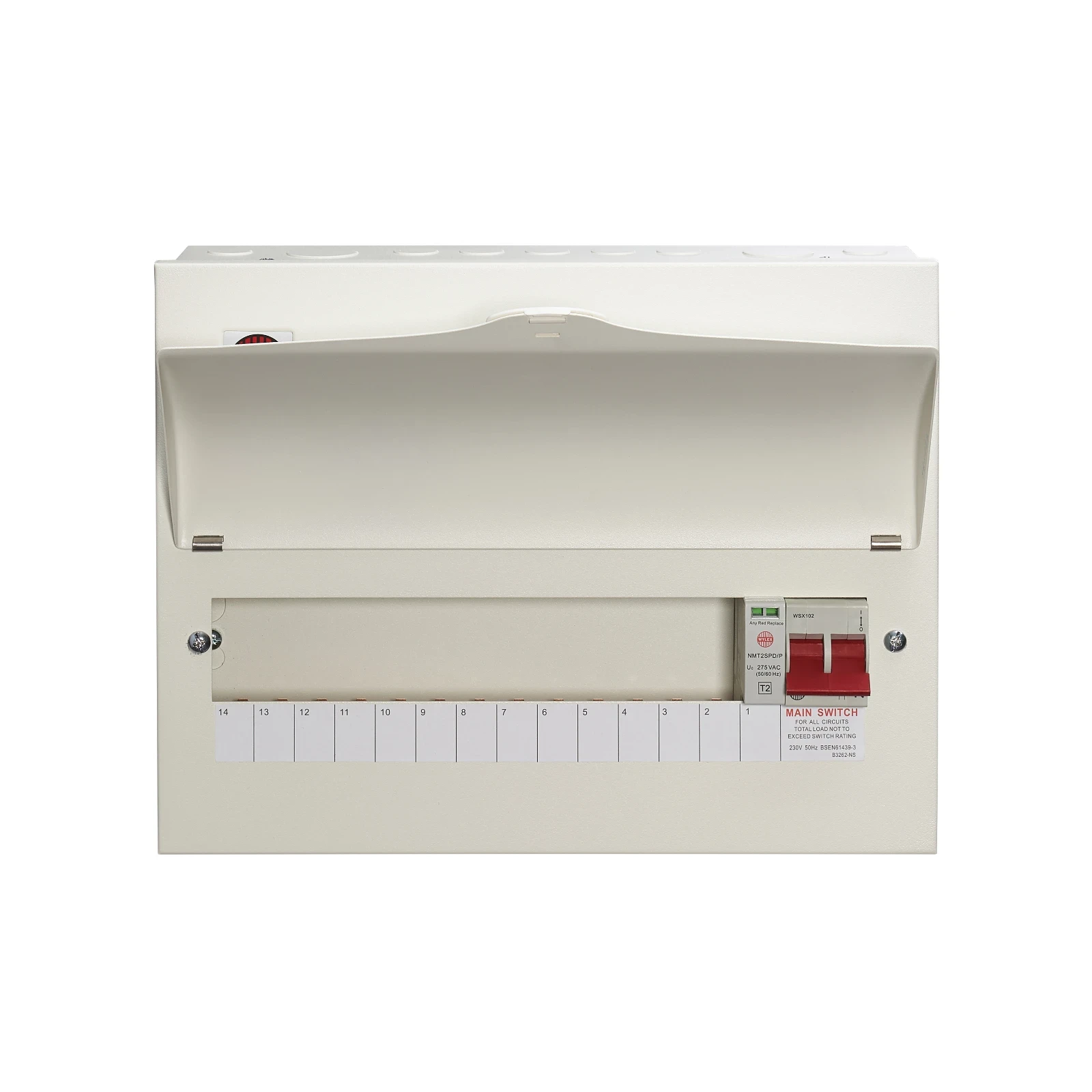

Wylex 13 Way Consumer Unit Main Switch 100A, Fixed Configuration, with SPD
Wylex 13 Way Consumer Unit Main Switch 100A, Fixed Configuration, with SPD
Wylex 13 Way Consumer Unit Main Switch 100A, Fixed Configuration, with SPD - Image 2
Wylex 13 Way Consumer Unit Main Switch 100A, Fixed Configuration, with SPD - Image 3

Wylex 13 Way Consumer Unit Main Switch 100A, Fixed Configuration, with SPD

£211.38 Incl. VAT

· · 13W Main switch plus SPD consumer unit · · Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly · · Fitted with the Wylex miniature type 2 SPD, NMT2SPD3W/1 · · Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs · · Constructed from a full metal enclosure with curved visor and temporary locking facility

21 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NM1306LS Categories: , , Brand: Part Number: 2501421666

Description

Technical Specifications  Technical Specifications Small distribution board equipped Housing material Steel Degree of protection (IP rating) IP2XC Colour White Width 343 mm Height 261 mm Depth 121 mm Width in number of modular spacings 16 Number of phases 1 RAL number 9010 Main switch rated current 100 A Number of poles main switch 2 Total number of groups 1 With transparent cover No Extension possible No Over voltage-/surge protection Yes Lockable Yes · Technical Data Sheet – Click to Download
