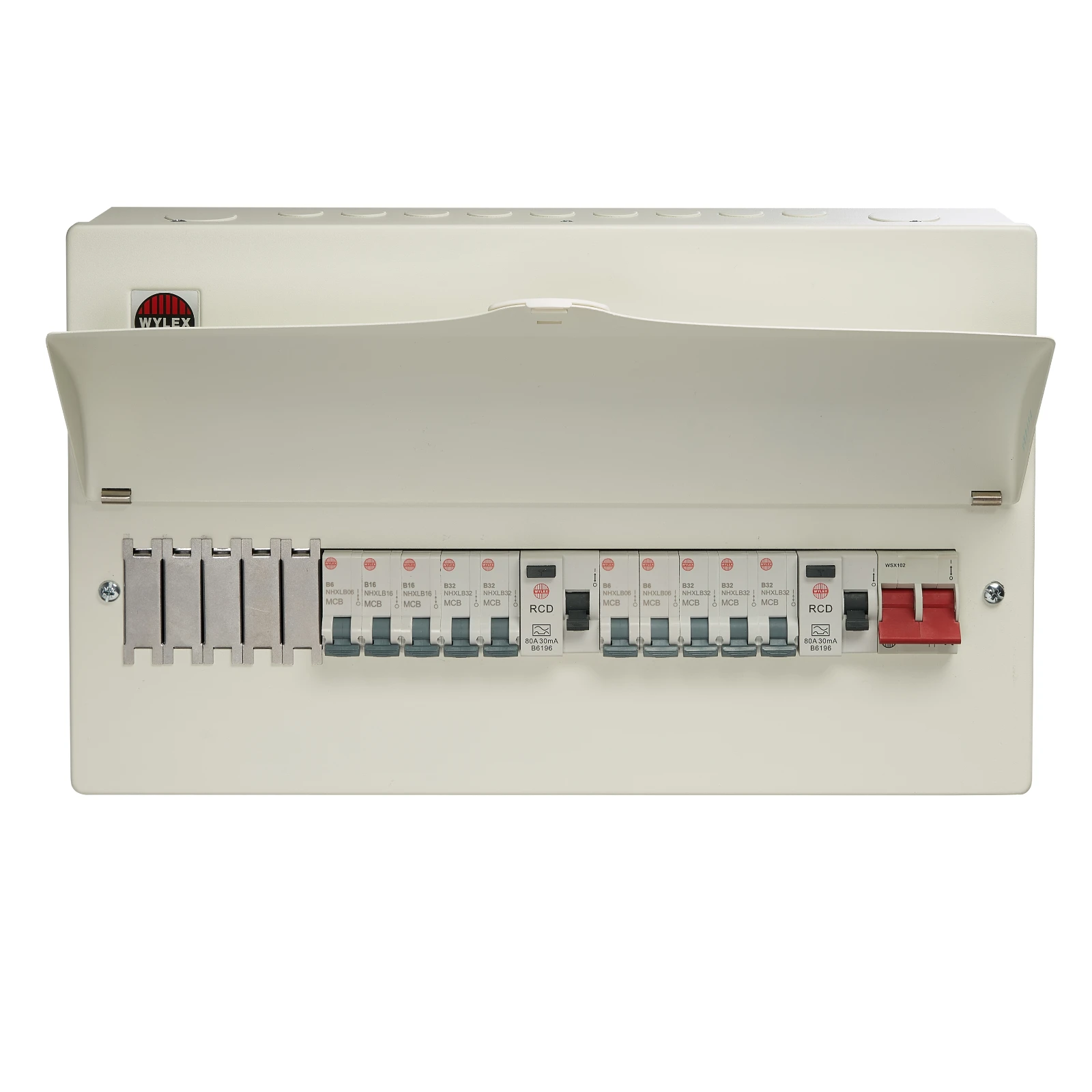

Wylex 15 Way High Integrity Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration with 10 MCBs

SKU: WNM1770Go Magpie ID: 5060062326015

Supplied with 2 x 80A 30mA Type A RCDs, 1 x 100A DP isolator and full complement of earth and neutral terminals along with marking labels, busbar and instructions. · · · 15 Way Flexible configuration as Dual RCD or High Integrity, space for RCBOs. NM Range. · · 100A Twin terminal Main Isolator · · 80A 30mA Type A RCDs · · Curved Visor with temporary locking facility · · Populated with 10 Type B Miniature Circuit Breakers (3x6A, 2x16A, 5x32A) and 5 blanks · · Lockable visor · · Fully compliant with BS EN 60439-4

£120.47inc VAT£100.39 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board equipped Width 438 mm Depth 121 mm Height 261 mm Width in number of modular spacings 21 Main switch rated current 100 A Number of phases 1 Total number of groups 3 Number of poles main switch 2 Lockable Yes Extension possible No Over voltage-/surge protection No With transparent cover No · Technical Data Sheet – Click to Download
