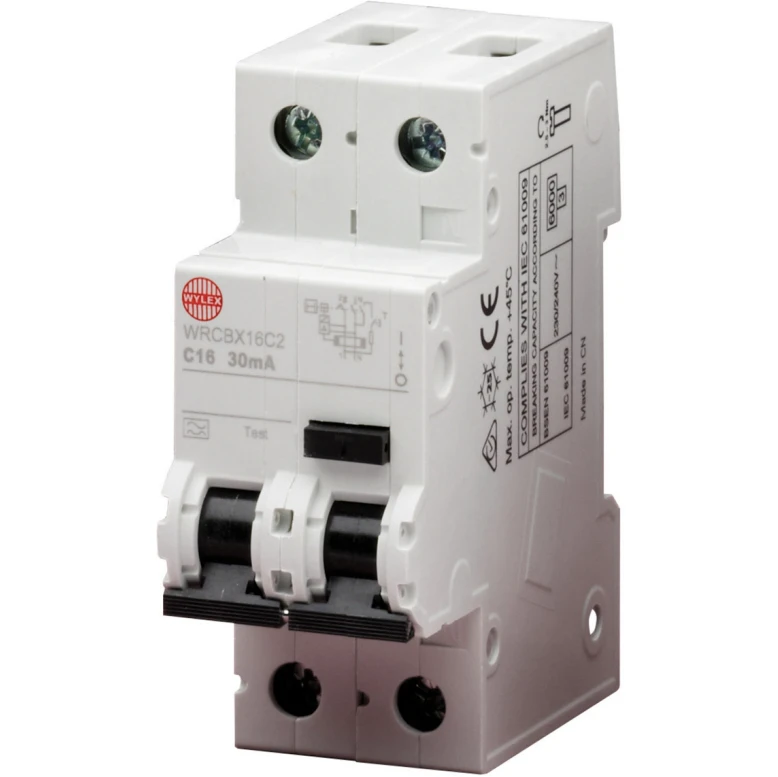

Wylex 16A 30mA SPswN C Curve 6kA Type A 2 Module Stand Alone RCBO

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 16 A Recess depth 73 mm Rated voltage 230 V Over voltage category 3 Width in number of modular spacings 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Number of protected poles 1 Number of poles (total) 2 Rated insulation voltage Ui 400 V Rated fault current 0.03 A Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Anti-nuisance tripping version No Concurrently switching N-neutral Yes With interlocking device No · Technical Data Sheet – Click to Download
