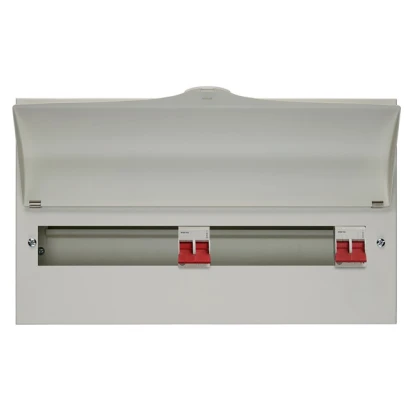

Wylex 17 Way Dual Tariff Consumer Unit 100A Main Switch +9, 100A Main switch +8
Wylex 17 Way Dual Tariff Consumer Unit 100A Main Switch +9, 100A Main switch +8
Wylex 17 Way Dual Tariff Consumer Unit 100A Main Switch +9, 100A Main switch +8 - Image 2

Wylex 17 Way Dual Tariff Consumer Unit 100A Main Switch +9, 100A Main switch +8

£180.61 Incl. VAT

NMIIX9806L Wylex NM All Metal Dual Tariff Consumer Unit 100A Main Switch 8 Way + 100A Main Switch 9 Way. It comes as compact enclosure with low smoke and fume painted features. This consumer unit comes with raised and removable DIN rail/busbar assembly. · · · Full metal enclosure · · Fixed busbar assembly · · 9+8 Dual tariff · · 2x 100A main switch · · Cable entry knockouts on 5 sides, top, bottom, left, right and rear · · UKAS certified to BS EN 61439-3 · · Top hinged self closing, stay shut door & metal hinges · · Factory fitted incoming devices for reduced installation time · · Factory fitted incoming devices for reduced installation time

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NMIIX9806L Category: Brand: Product Code: 2501076264

Description

Technical Specifications  Technical Specifications Small distribution board equipped Depth 121 mm Width 438 mm Width in number of modular spacings 21 Height 261 mm Number of poles main switch 2 Total number of groups 2 Main switch rated current 100 A Number of phases 1 With transparent cover No Extension possible No Lockable Yes Over voltage-/surge protection No
