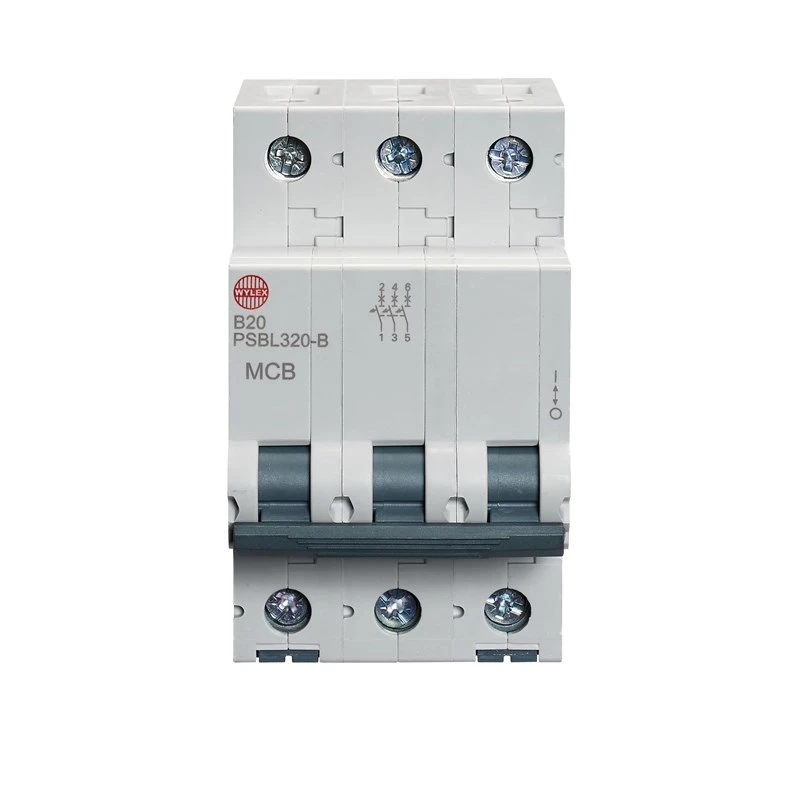

Wylex 20A Three Pole MCB B Curve 10kA
Wylex 20A Three Pole MCB B Curve 10kA
Wylex 20A Three Pole MCB B Curve 10kA - Image 2

Wylex 20A Three Pole MCB B Curve 10kA

£40.02 Incl. VAT

· · B curve trip characterisitic (3-5In) · · Three Pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSBL320-B Categories: , , Brand: Product Code: 2501515326

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Rated current 20 A Width in number of modular spacings 3 Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Current limiting class 3 Rated insulation voltage Ui 400 V Number of poles (total) 3 Number of protected poles 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Additional equipment possible No Concurrently switching N-neutral No
