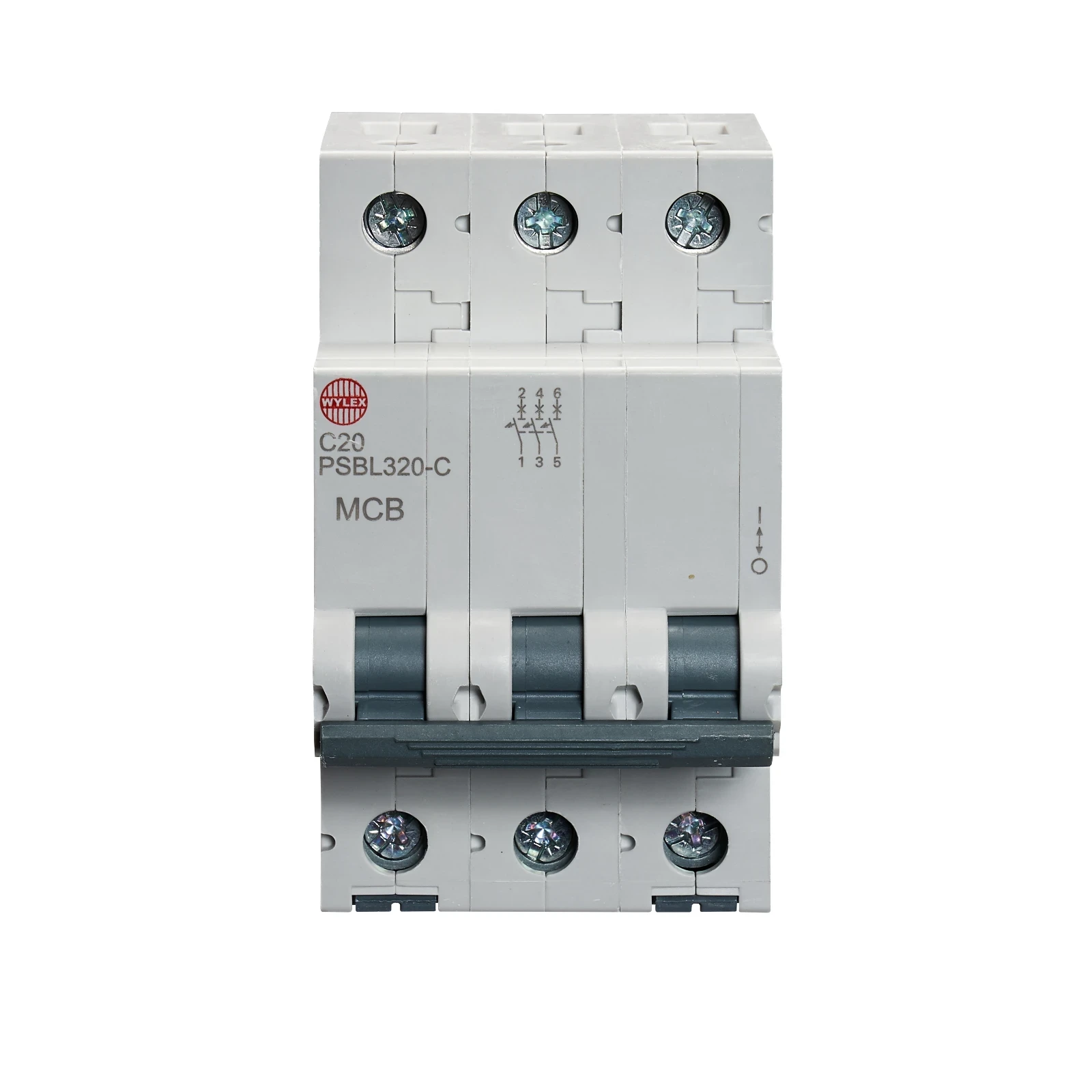

Wylex 20A Three Pole MCB C Curve 10kA
Wylex 20A Three Pole MCB C Curve 10kA
Wylex 20A Three Pole MCB C Curve 10kA - Image 2
Wylex 20A Three Pole MCB C Curve 10kA - Image 3

Wylex 20A Three Pole MCB C Curve 10kA

£104.62 Incl. VAT

· · C curve trip characteristic (5-10In) · · Three Pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3

8 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSBL320-C Categories: , , Brand: Part Number: 2501515336

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Current limiting class 3 Over voltage category 3 Rated insulation voltage Ui 400 V Rated voltage 230 V Number of protected poles 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 3 Rated current 20 A Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download
