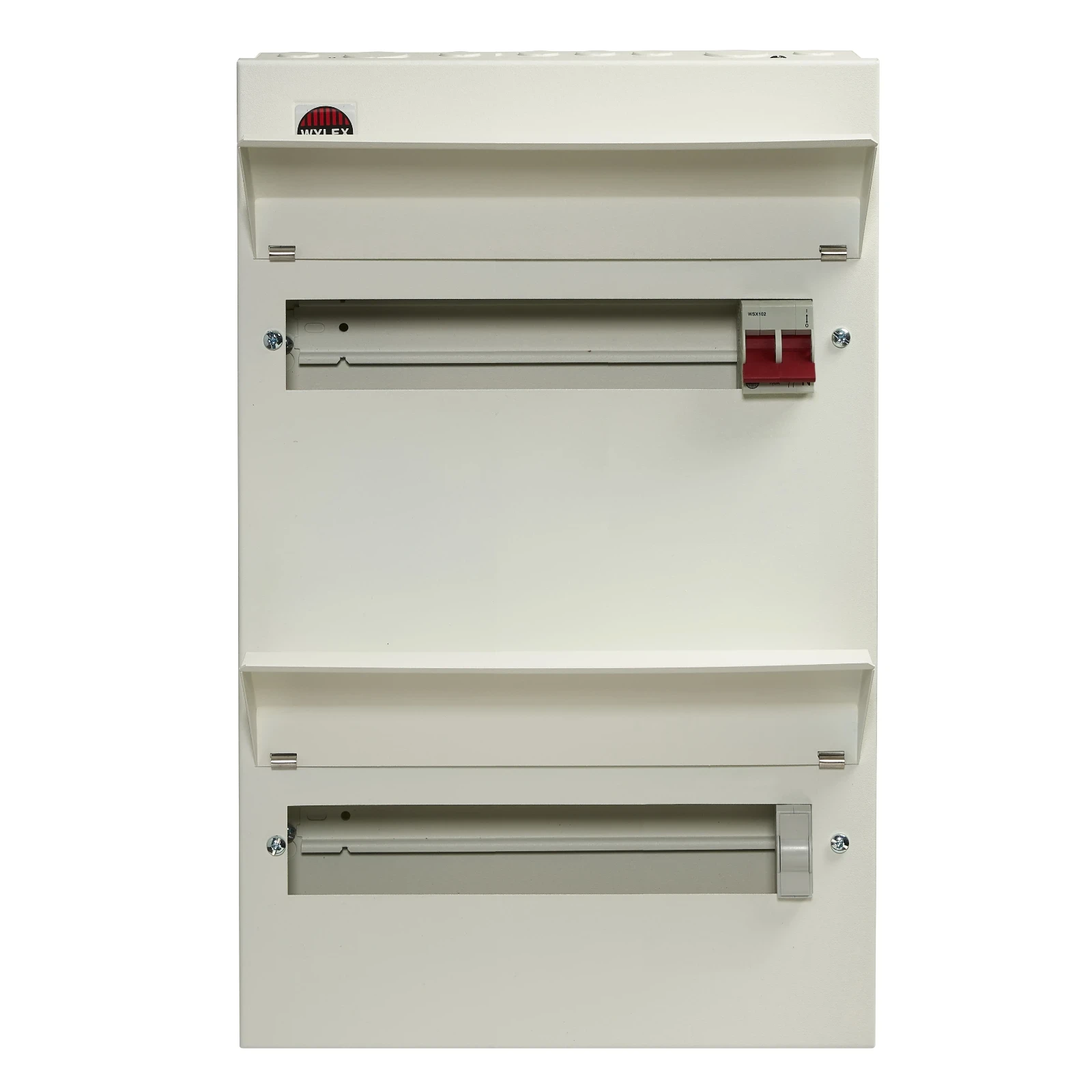

Wylex 23 Way Duplex Consumer Unit Main Switch 100A

SKU: NMD1112Go Magpie ID: 5060062361008

Wylex offers the NM range of residential circuit protection products for suitability across all applications and presented with a full non combustible solution in compliance with AM3 in the Wiring Regulations. · · · Full metal duplex enclosure · · Fixed busbar assembly · · 23W Main switch only · · Clean aesthetic · · 23 way · · duplex design · · Fully compatible with Arc Fault Detection Devices (AFDD)

£196.96inc VAT£164.13 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board equipped Depth 121 mm Width 295 mm Height 506 mm Width in number of modular spacings 13 Number of phases 1 Total number of groups 1 Number of poles main switch 2 Extension possible No Main switch rated current 100 A With transparent cover No Over voltage-/surge protection No Lockable No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
