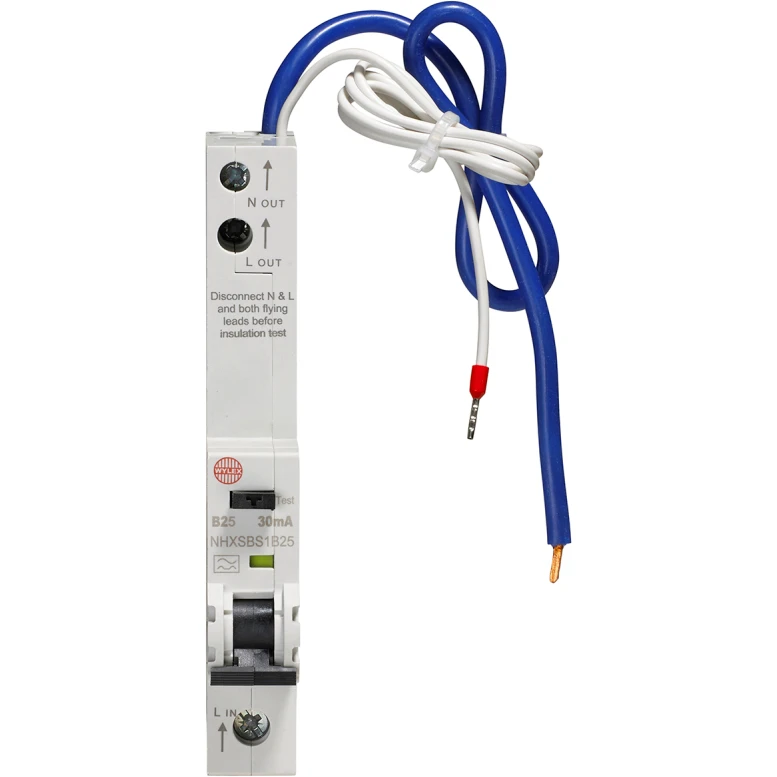

Wylex 25A 30mA SPN B Curve 6kA Type A RCBO

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Recess depth 74 mm Rated current 25 A Rated voltage 230 V Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Current limiting class 3 Number of protected poles 1 Number of poles (total) 2 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Anti-nuisance tripping version No With interlocking device No
