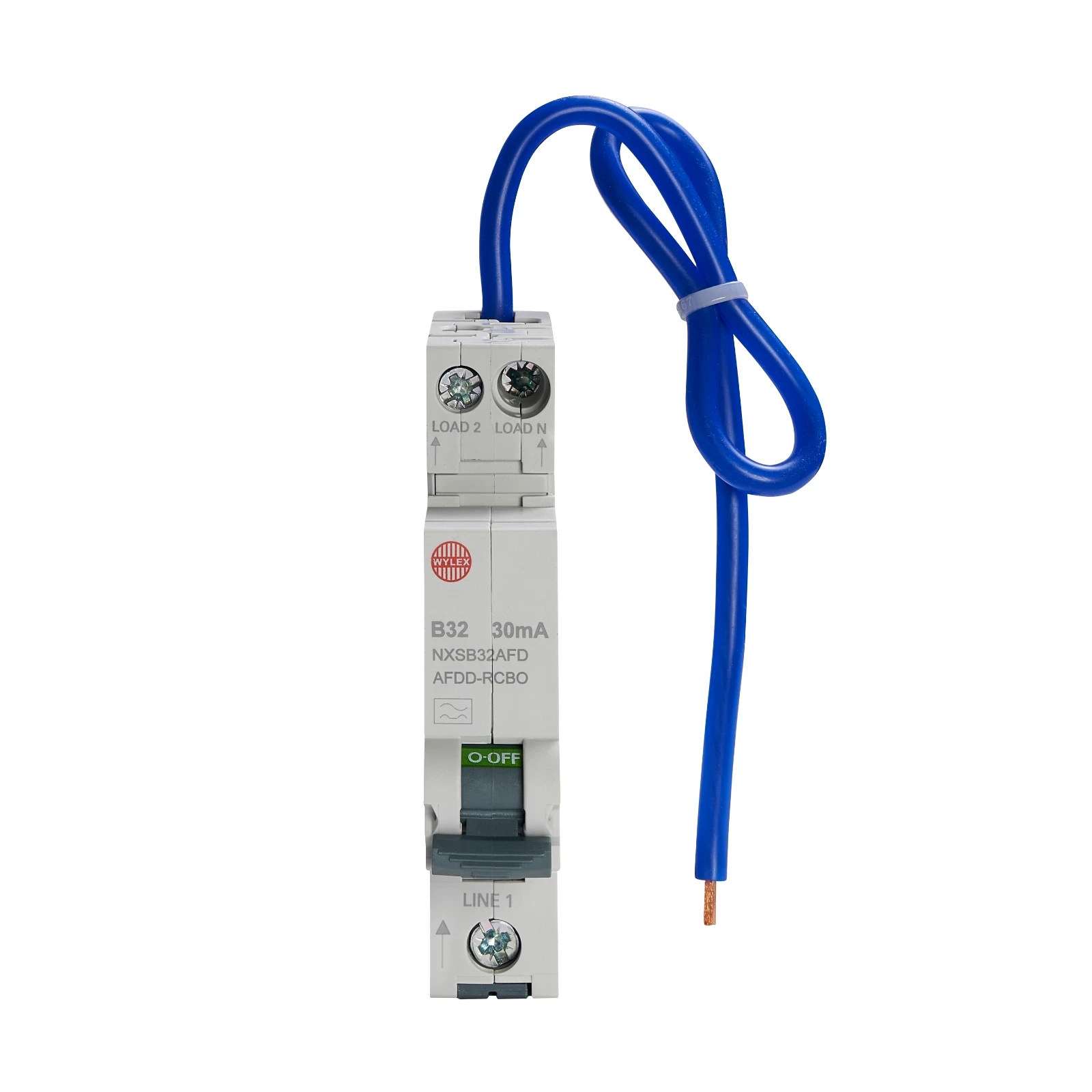

Wylex 32A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO
£130.33 Incl. VAT
Wylex NXSB32AFD 32A Double Pole 1 Module B Curve 6kA 30mA AFDD Combined RCBO, Fits all new and exisiting installations and combines 3 technologies, AFDD technology automatically disconnects dangerous electrical arcs that can cause fires, MCB technology prevents overload currents and overheating, RCD technology which prevents electrical shocks, All in one single compact module · · · Single module, Miniature AFDD/RCBO combined · · 32A B curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · No miss busbar connection · · Fits NM & NMX consumer units and NH L range Distribution Boards
403 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Rated insulation voltage Ui 400 V Tripping characteristic (type/curve) B Rated fault current 0.03 A Rated current 32 A Width in number of modular spacings 1 Rated voltage 230 V Recess depth 73 mm Current limiting class 3 Number of poles (total) 2 Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Number of protected poles 1 Anti-nuisance tripping version No Concurrently switching N-neutral Yes Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
