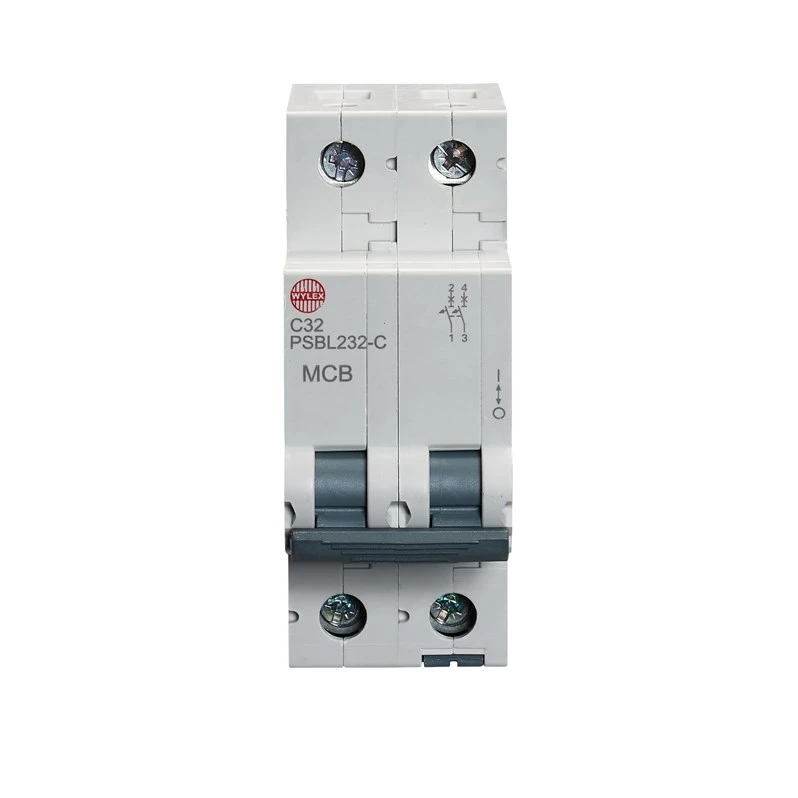

Wylex 32A Double pole MCB C curve 10kA
Wylex 32A Double pole MCB C curve 10kA
Wylex 32A Double pole MCB C curve 10kA - Image 2

Wylex 32A Double pole MCB C curve 10kA

£31.75 Incl. VAT

· · C curve trip characteristic (5-10In) · · Double Pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSBL232-C Categories: , , Brand: Product Code: 2501515308

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 32 A Rated voltage 230 V Current limiting class 3 Rated insulation voltage Ui 400 V Over voltage category 3 Width in number of modular spacings 2 Number of protected poles 2 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 2 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Frequency 50 – 50 Hz Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Additional equipment possible No Concurrently switching N-neutral No Flush-mounted installation No
