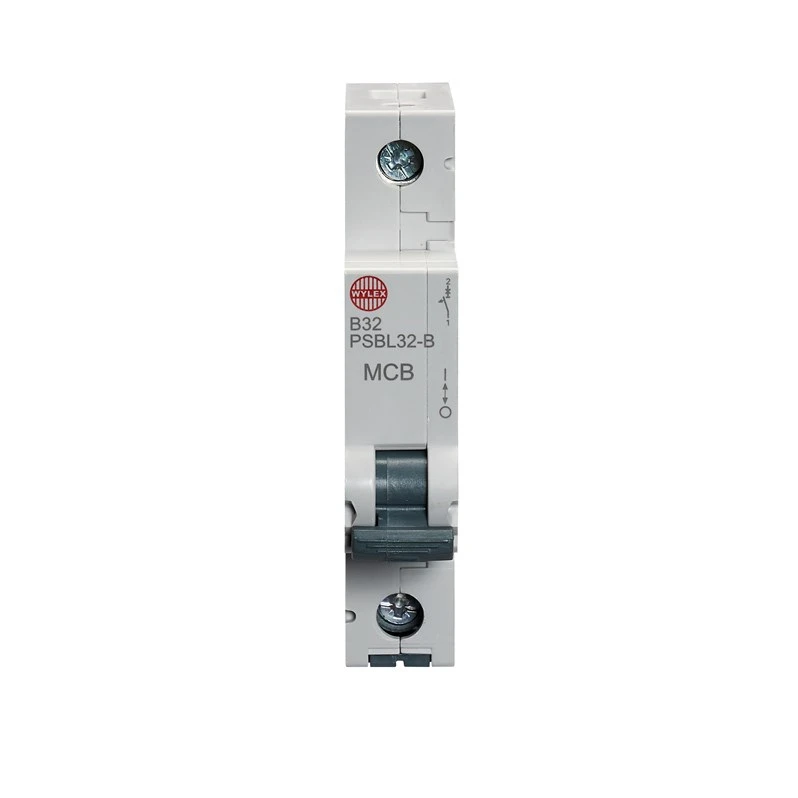

Wylex 32A Single Pole MCB B Curve 10kA

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 32 A Rated voltage 230 V Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Over voltage category 3 Number of poles (total) 1 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No
