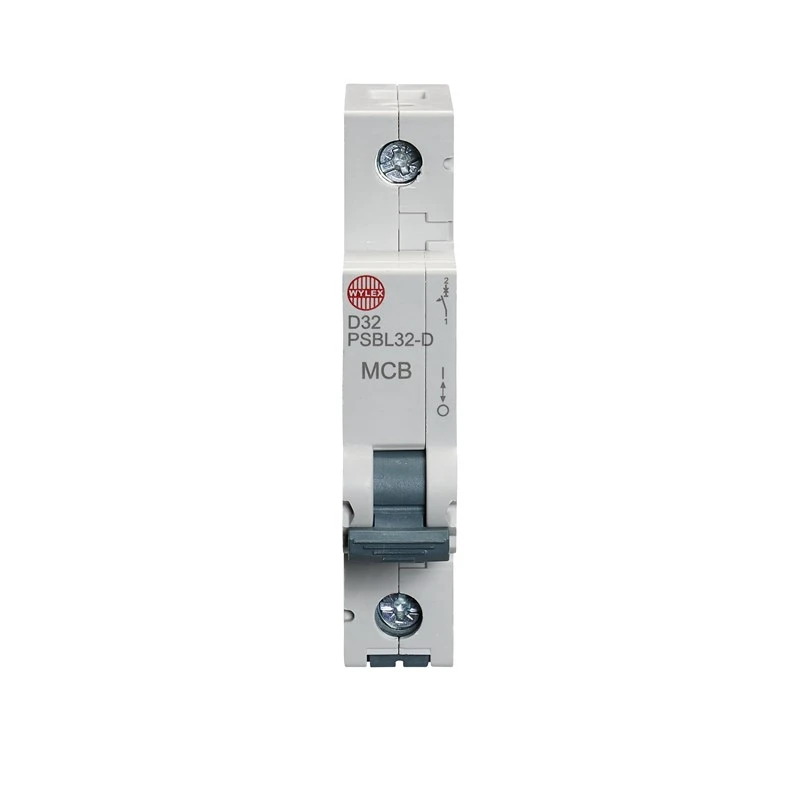

Wylex 32A Single pole MCB D curve 10kA
Wylex 32A Single pole MCB D curve 10kA
Wylex 32A Single pole MCB D curve 10kA - Image 2

Wylex 32A Single pole MCB D curve 10kA

£9.58 Incl. VAT

· · D curve trip characteristic (10-20In) · · Single Pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSBL32-D Categories: , , Brand: Product Code: 2501515288

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated insulation voltage Ui 400 V Current limiting class 3 Over voltage category 3 Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated current 32 A Number of protected poles 1 Frequency 50 – 50 Hz Rated voltage 230 V Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Connectable conductor cross section multi-wired 0.75 – 25 mm² Additional equipment possible No Concurrently switching N-neutral No
